2SD1119 Datasheet NPN Transistor

Manufacturer: MLSM

📥 Download Datasheet

Datasheet Details

Part number 2SD1119
Manufacturer MLSM
File Size 542.61 KB
Description NPN Transistor
Datasheet download datasheet 2SD1119 Datasheet

Key Features

  • Low collector-emitter saturation voltage VCE(sat).

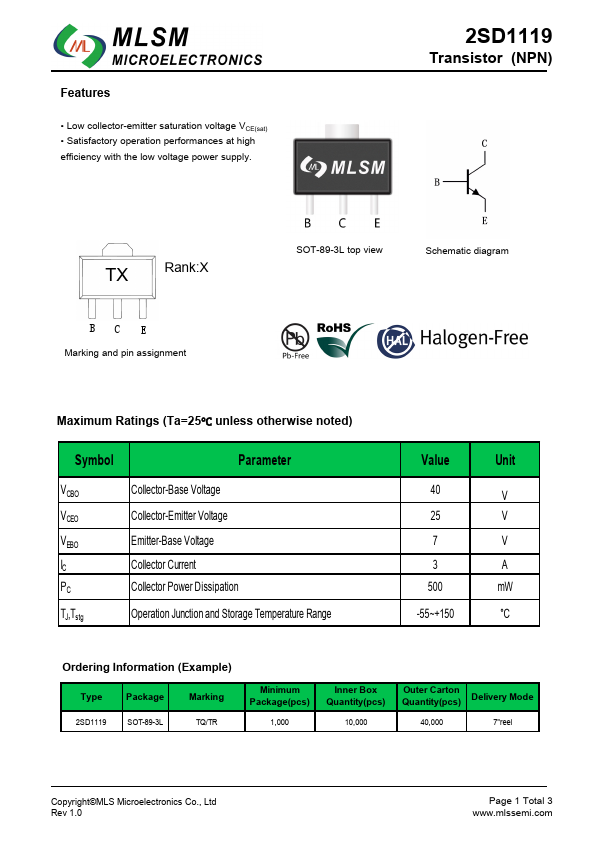

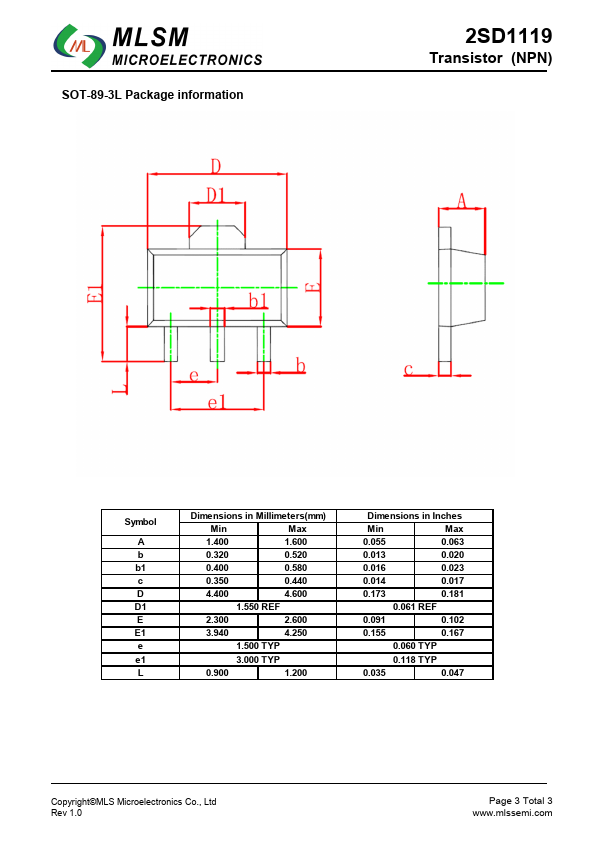

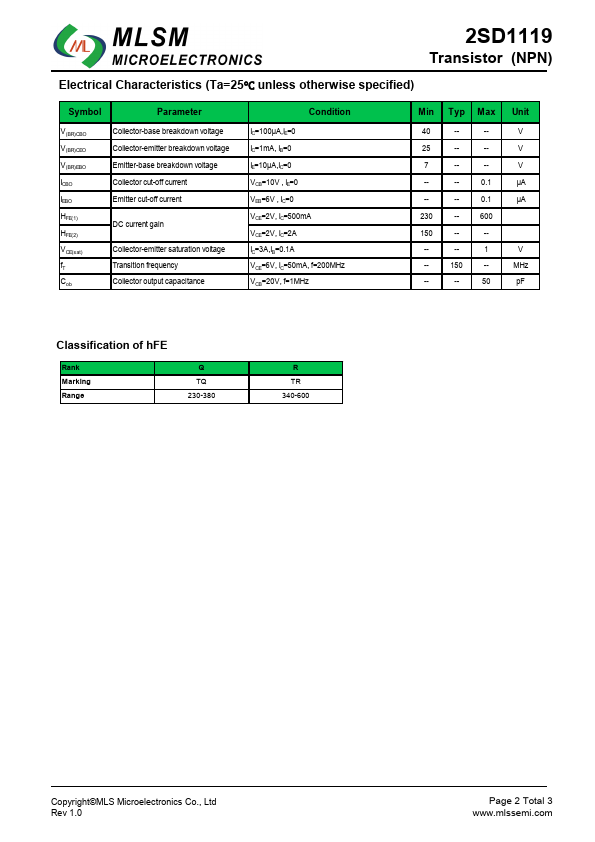

  • Satisfactory operation performances at high efficiency with the low voltage power supply. X:Rank 2SD1119 Transistor (NPN) TX Rank:X BC E Marking and pin assignment SOT-89-3L top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current PC Collector Power Dissipation TJ,Tst.
