NDT6N70P - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 700V.
  • ID = 4.8A (VGS = 10V).
  • RDS(ON) ＜ 1.8Ω (VGS = 10V).
  • Low gate charge ( typical 16nC) D G S TO-251 1 23 123 Unit: mm.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current (Note.1) Avalanche Current (Note.1) Repetitive Avalanche Energy (Note.1) Single Pulsed Avalanche Energy (Note.2) Power Dissipation Tc=25℃ Derate above 25℃ Peak Diode Recovery dv/d.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT6N70 N-Channel Enhancement MOSFET
NDT6N60 N-Channel MOSFET
NDT6N60P N-Channel MOSFET
NDT6N65P N-Channel Enhancement MOSFET
NDT06N02 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

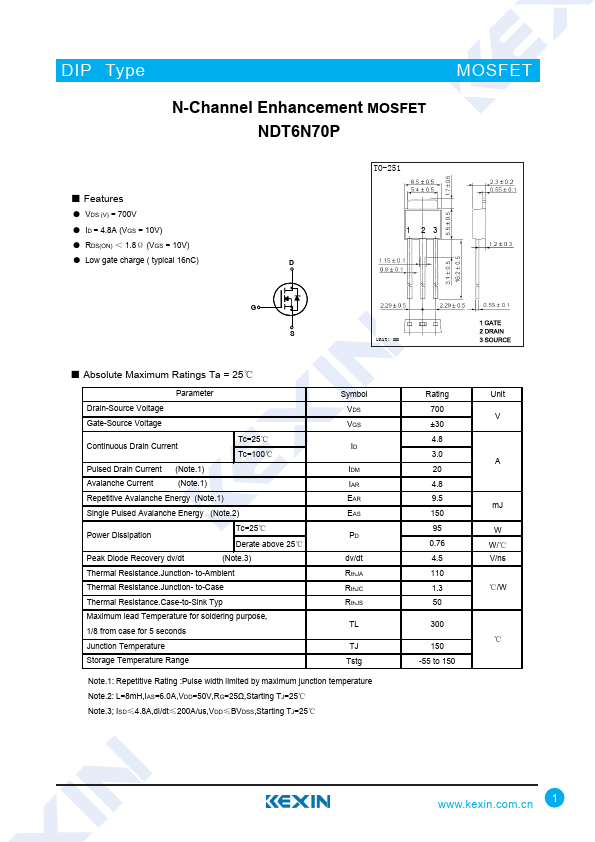

DIP Type MOSFET N-Channel Enhancement MOSFET NDT6N70P ■ Features ● VDS (V) = 700V ● ID = 4.8A (VGS = 10V) ● RDS(ON) ＜ 1.8Ω (VGS = 10V) ● Low gate charge ( typical 16nC) D G S TO-251 1 23 123 Unit: mm ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=100℃ Pulsed Drain Current (Note.1) Avalanche Current (Note.1) Repetitive Avalanche Energy (Note.1) Single Pulsed Avalanche Energy (Note.2) Power Dissipation Tc=25℃ Derate above 25℃ Peak Diode Recovery dv/dt (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Thermal Resistance.
