NDT6N60P - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 6.2 A (VGS = 10V).
  • RDS(ON) ＜ 1.5Ω (VGS = 10V).
  • Fast switching capability.
  • Low reverse transfer Capacitance Drain 1 23 123 Unit: mm Gate Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Power Dissipation Avalanche Energy Single Pulsed (Note 1) Repetitive Peak Diode Recovery dv/dt (Note.2) Thermal Resistance. Junction- to-A.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDT014 N-Channel MOSFET VBsemi
NDT014 N-Channel MOSFET Fairchild
NDT014L N-Channel MOSFET Fairchild
NDT01N60 N-Channel Power MOSFET ON Semiconductor
NDT01N60T1G N-Channel Power MOSFET ON Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
NDT6N60 N-Channel MOSFET
NDT06N02 N-Channel MOSFET
NDT06N03 N-Channel MOSFET
NDT110N03 N-Channel MOSFET
NDT15N10 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

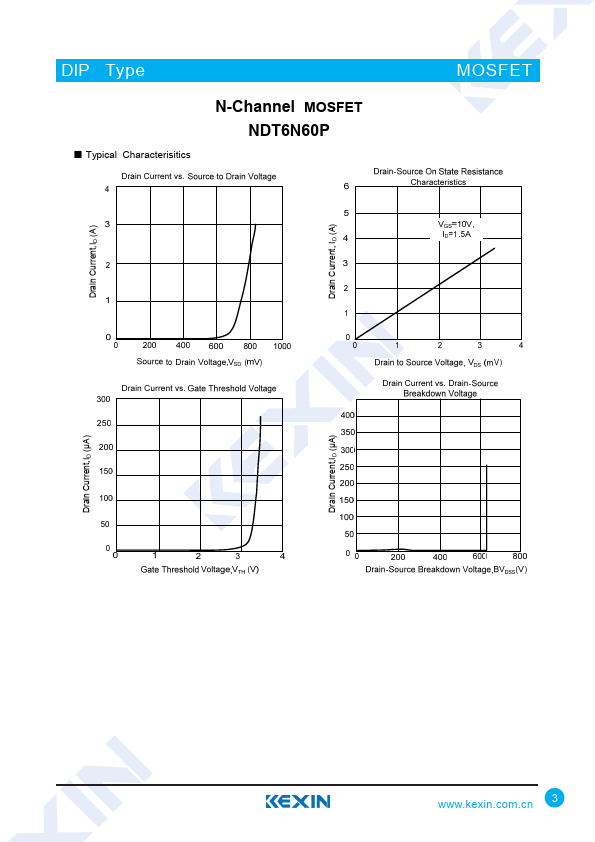

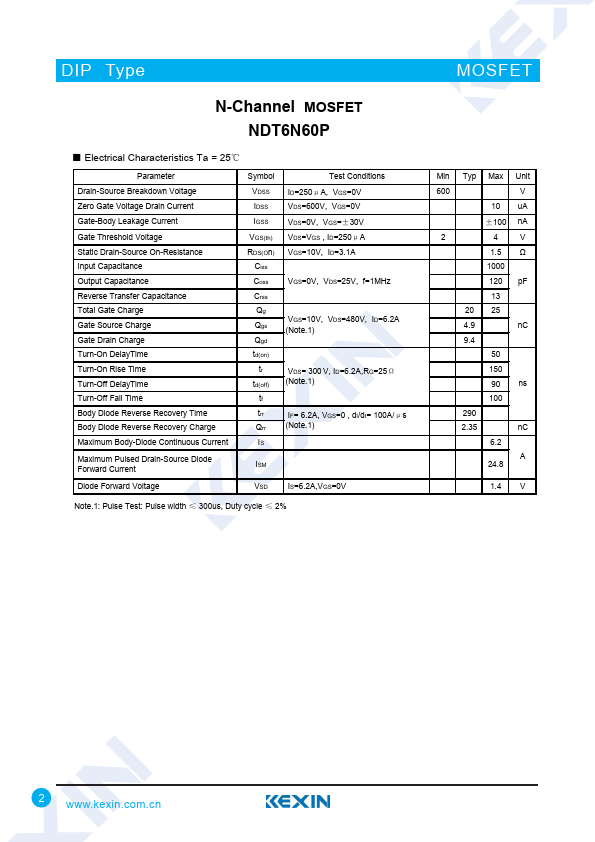

DIP Type N-Channel MOSFET NDT6N60P TO-251 MOSFET ■ Features ● VDS (V) = 600V ● ID = 6.2 A (VGS = 10V) ● RDS(ON) ＜ 1.5Ω (VGS = 10V) ● Fast switching capability ● Low reverse transfer Capacitance Drain 1 23 123 Unit: mm Gate Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Power Dissipation Avalanche Energy Single Pulsed (Note 1) Repetitive Peak Diode Recovery dv/dt (Note.2) Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM IAR PD EAS EAR dv/dt RthJA RthJC TJ Tstg Note.1: L = 14mH, IAS = 6A, VDD = 90V, RG = 25 Ω, Starting TJ = 25°C Note.2: ISD ≤ 6.
