IRF630S - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 200V.
  • ID = 9 A (VGS = 10V).
  • RDS(ON) ＜ 400mΩ (VGS = 10V).
  • Fast switching.
  • Low thermal resistance d g s.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Peak Non-Repetitive Avalanche Current Power Dissipation Non-Repetitive Avalanche Energy Thermal Resistance. Junction- to-Ambient Thermal Resistance Junction to Mounting Base Junction Temperature Stor.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF630S N-Channel Power MOSFET STMicroelectronics
IRF630S N-Channel MOSFET NXP
IRF630S Power MOSFET Vishay
IRF630 N-channel MOSFET STMicroelectronics
IRF630 N-Channel Power MOSFET Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
IRF1404Z N-Channel MOSFET
IRF3205 Power MOSFET
IRF3808S N-Channel MOSFET
IRF540NS N-Channel MOSFET
IRF7205 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

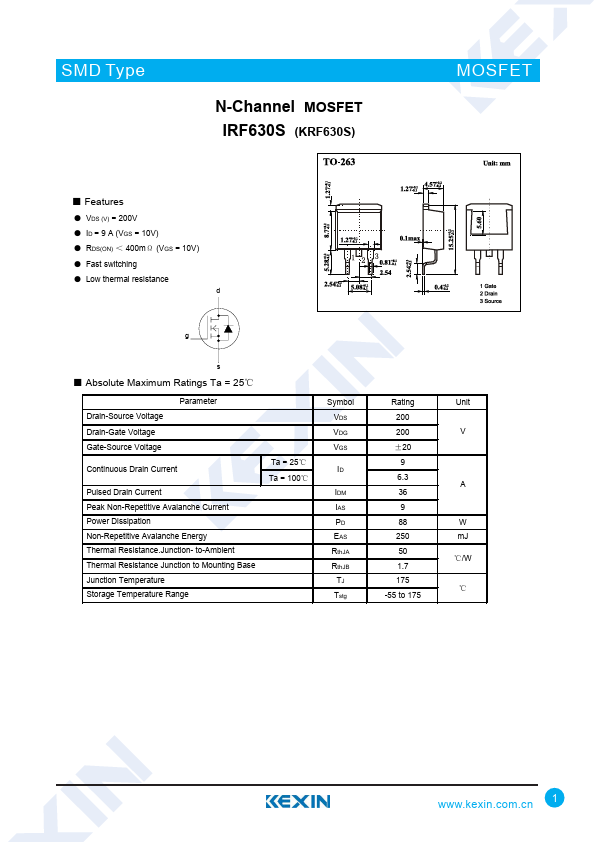

SMD Type N-Channel MOSFET IRF630S (KRF630S) MOSFET ■ Features ● VDS (V) = 200V ● ID = 9 A (VGS = 10V) ● RDS(ON) ＜ 400mΩ (VGS = 10V) ● Fast switching ● Low thermal resistance d g s ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Peak Non-Repetitive Avalanche Current Power Dissipation Non-Repetitive Avalanche Energy Thermal Resistance.Junction- to-Ambient Thermal Resistance Junction to Mounting Base Junction Temperature Storage Temperature Range Ta = 25℃ Ta = 100℃ Symbol VDS VDG VGS ID IDM IAS PD EAS RthJA RthJB TJ Tstg Rating 200 200 ±20 9 6.3 36 9 88 250 50 1.7 175 -55 to 175 Unit V A W mJ ℃/W ℃ www.kexin.com.
