2SD602 Datasheet Silicon NPN Epitaxial Planar Type Transistors

Manufacturer: Kexin Semiconductor

Datasheet Details

Part number	2SD602
Manufacturer	Kexin Semiconductor
File Size	32.92 KB
Description	Silicon NPN Epitaxial Planar Type Transistors
Download	2SD602 Download (PDF)

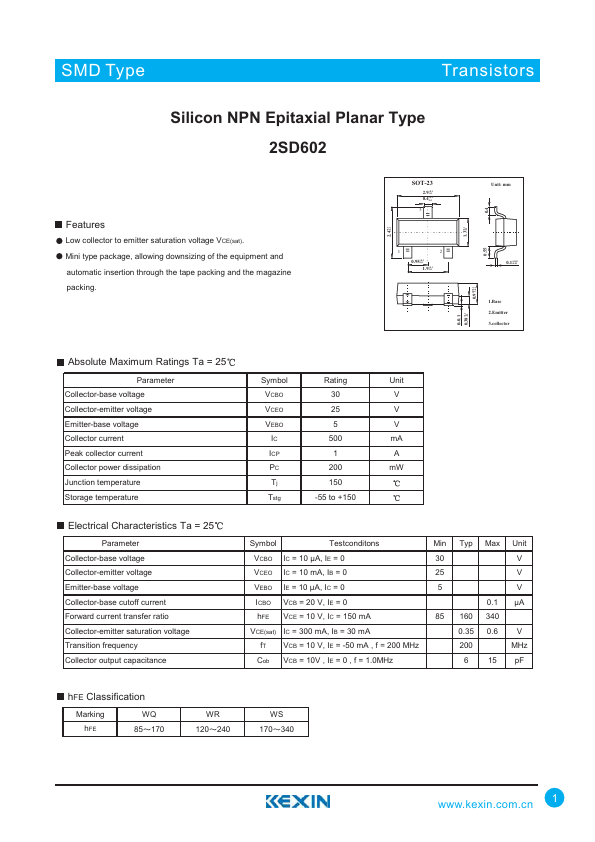

SMD Type TransistIoCrs Silicon NPN Epitaxial Planar Type 2SD602.

Low collector to emitter saturation voltage VCE(sat). Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltag.
