74HC40105D, 74HC40105 4-bit x 16-word FIFO register

74HC40105D Description

74HC40105 4-bit x 16-word FIFO register Rev.5 * 19 April 2019 Product data sheet 1.General .
The 74HC40105 is a first-in/first-out (FIFO) "elastic" storage register that can store 16 4-bit words.

74HC40105D Features

* Independent asynchronous inputs and outputs
* Expandable in either direction
* Reset capability
* Status indicators on inputs and outputs
* 3-state outputs
* CMOS input levels
* Complies with JEDEC standard JESD7A
* ESD protection:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74HC40105D, 74HC40105. Please refer to the document for exact specifications by model.

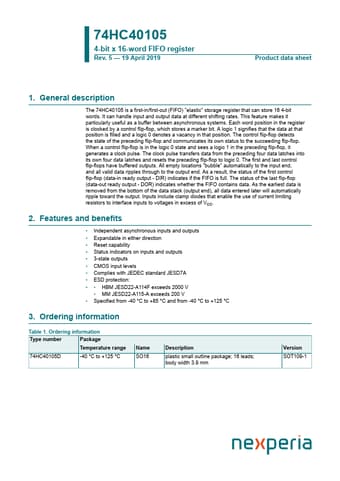

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HC40105D, 74HC40105
Manufacturer
nexperia ↗
File Size
310.10 KB
Datasheet
74HC40105-nexperia.pdf
Description
4-bit x 16-word FIFO register
Note
This datasheet PDF includes multiple part numbers: 74HC40105D, 74HC40105.
Please refer to the document for exact specifications by model.
