74HC4017-Q100 - Johnson decade counter

Name: 74HC4017-Q100
SKU: 74HC4017-Q100-1394587

nexperia

📥 Download Datasheet

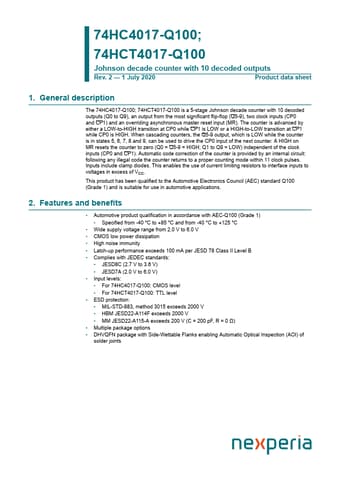

74HC4017-Q100 Datasheet Preview — Preview of 74HC4017-Q100 PDF

Datasheet Details

Part number	74HC4017-Q100
Manufacturer	nexperia
File Size	298.24 KB
Description	Johnson decade counter
Datasheet	74HC4017-Q100-nexperia.pdf

74HC4017-Q100 Product details

Description

The 74HC4017-Q100; 74HCT4017-Q100 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR).

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC4.
