74HC40102 8-bit synchronous BCD down counter

74HC40102 Description

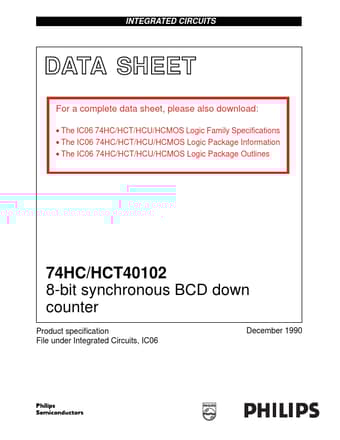

INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: * The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications .
The 74HC/HCT40102 are high-speed Si-gate CMOS devices and are pin compatible with the “40102” of the “4000B” series.

74HC40102 Features

* Cascadable
* Synchronous or asynchronous preset
* Output capability: standard

74HC40102 Applications

* Divide-by-n counters
* Programmable timers
* Interrupt timers
* Cycle/program counters QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns SYMBOL PARAMETER CONDITIONS tPHL/ tPLH fmax CI CPD propagation delay CP to TC maximum clock frequency input capac
