74HC40103D, 74HC40103 8-bit synchronous binary down counter

74HC40103D Description

74HC40103 8-bit synchronous binary down counter Rev.5 * 21 April 2016 Product data sheet 1.General .
The 74HC40103 is an 8-bit synchronous down counter.

74HC40103D Features

* Cascadable
* Synchronous or asynchronous preset
* Low-power dissipation
* Complies with JEDEC standard no. 7A
* CMOS input levels
* ESD protection:
* HBM JESD22-A114F exceeds 2000 V
* MM JESD22-A115-A exceeds 200 V
* Multiple package options
* Specified from

74HC40103D Applications

* Divide-by-n counters
* Programmable timers
* Interrupt timers
* Cycle/program counters. Nexperia 74HC40103 8-bit synchronous binary down counter 4. Ordering information Table 1. Ordering information Type number Package Temperature range 74HC40103D 40 C to +125 C 74HC40

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 74HC40103D, 74HC40103. Please refer to the document for exact specifications by model.

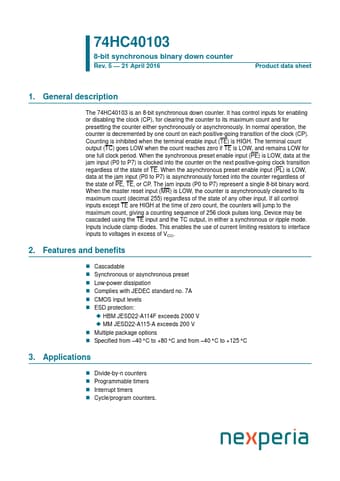

datasheet Preview Page 2 datasheet Preview Page 3
