LMX2512, LMX2502 - Frequency Synthesizer System

Texas Instruments

The LMX2512 by Texas Instruments is a Frequency Synthesizer System. Below is the official datasheet preview.

📥 Download Datasheet

LMX2512 Frequency Synthesizer System by Texas Instruments - Datasheet Preview — Official preview page of the **LMX2512** Frequency Synthesizer System datasheet (Texas Instruments).

Datasheet Details

Part number	LMX2512, LMX2502
Manufacturer	Texas Instruments
File Size	836.52 KB
Description	Frequency Synthesizer System
Datasheet	LMX2502-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LMX2512, LMX2502. Please refer to the document for exact specifications by model.

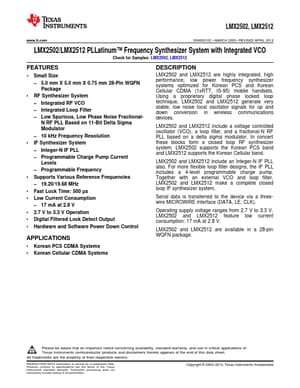

Additional preview pages of the LMX2512 datasheet.

LMX2512 Product details

Description

LMX2502 and LMX2512 are highly integrated, high performance, low power frequency synthesizer systems optimized for Korean PCS and Korean Cellular CDMA (1xRTT, IS-95) mobile handsets.

Features

1.
2 Small Size.
5.0 mm X 5.0 mm X 0.75 mm 28-Pin WQFN Package.
RF Synthesizer System.
Integrated RF VCO.
Integrated Loop Filter.
Low Spurious, Low Phase Noise FractionalN RF PLL Based on 11-Bit Delta Sigma Modulator.
10 kHz Frequency Resolution.
IF Synthesizer System.
Integer-N IF PLL.
Programmable Charge Pump Current Levels.
Programmable Frequency.
Supports Various Reference Frequencies.
