LMX2531LQ1500E - High Performance Frequency Synthesizer System

National Semiconductor

The LMX2531LQ1500E by National Semiconductor is a High Performance Frequency Synthesizer System. Below is the official datasheet preview.

📥 Download Datasheet

LMX2531LQ1500E High Performance Frequency Synthesizer System by National Semiconductor - Datasheet Preview — Official preview page of the **LMX2531LQ1500E** High Performance Frequency Synthesizer System datasheet (National Semiconductor).

Datasheet Details

Part number	LMX2531LQ1500E
Manufacturer	National Semiconductor
File Size	588.96 KB
Description	High Performance Frequency Synthesizer System
Datasheet	LMX2531LQ1500E_NationalSemiconductor.pdf
Additional preview pages of the LMX2531LQ1500E datasheet.

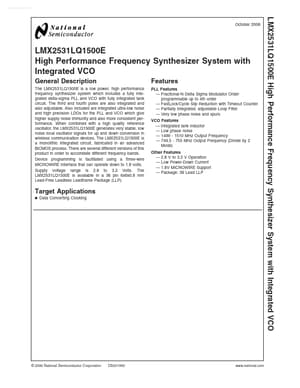

LMX2531LQ1500E Product details

Description

The LMX2531LQ1500E is a low power, high performance frequency synthesizer system which includes a fully integrated delta-sigma PLL and VCO with fully integrated tank circuit.

Features

PLL Features.
Fractional-N Delta Sigma Modulator Order programmable up to 4th order.
FastLock/Cycle Slip Reduction with Timeout Counter.
Partially integrated, adjustable Loop Filter.
Very low phase noise and spurs VCO Features.
Integrated tank inductor.
Low phase noise.
1499 - 1510 MHz Output Frequency.
749.5 - 755 MHz Output Frequency (Divide by 2 Mode) Other Features.
2.8 V to 3.2 V Operation.
Low Power-D.
