LMX2502 - Frequency Synthesizer System

Name: LMX2502
SKU: LMX2502-1410709

Texas Instruments

📥 Download Datasheet

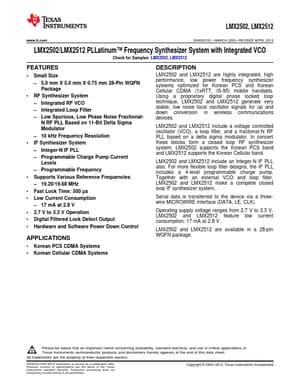

LMX2502 Datasheet Preview — Preview of LMX2502 PDF

Datasheet Details

Part number	LMX2502
Manufacturer	Texas Instruments
File Size	836.52 KB
Description	Frequency Synthesizer System
Datasheet	LMX2502-etcTI.pdf

LMX2502 Product details

Description

LMX2502 and LMX2512 are highly integrated, high performance, low power frequency synthesizer systems optimized for Korean PCS and Korean Cellular CDMA (1xRTT, IS-95) mobile handsets.

Features

1.
2 Small Size.
5.0 mm X 5.0 mm X 0.75 mm 28-Pin WQFN Package.
RF Synthesizer System.
Integrated RF VCO.
Integrated Loop Filter.
Low Spurious, Low Phase Noise FractionalN RF PLL Based on 11-Bit Delta Sigma Modulator.
10 kHz Frequency Resolution.
IF Synthesizer System.
Integer-N IF PLL.
Programmable Charge Pump Current Levels.
Programmable Frequency.
Supports Various Reference Frequencies.
