LMX2216 - 0.1 GHz to 2.0 GHz Low Noise Amplifier/Mixer

National Semiconductor

📥 Download Datasheet

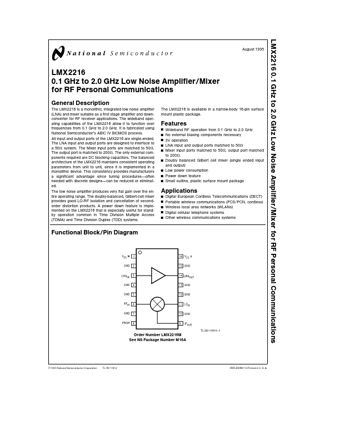

LMX2216 Datasheet Preview — Preview of LMX2216 PDF

Datasheet Details

Part number	LMX2216
Manufacturer	National Semiconductor
File Size	258.73 KB
Description	0.1 GHz to 2.0 GHz Low Noise Amplifier/Mixer
Datasheet	LMX2216_NationalSemiconductor.pdf

LMX2216 Product details

Description

The LMX2216 is a monolithic integrated low noise amplifier (LNA) and mixer suitable as a first stage amplifier and downconverter for RF receiver applications The wideband operating capabilities of the LMX2216 allow it to function over frequencies from 0 1 GHz to 2 0 GHz It is fabricated using National Semiconductor’s ABiC IV BiCMOS process All input and output ports of the LMX2216 are single-ended The LNA input and output ports are designed to interface to a 50X system The Mixer input ports are

Features

Y Y Y Y Y Y Y Y Y Wideband RF operation from 0 1 GHz to 2 0 GHz No external biasing components necessary 3V operation LNA input and output ports matched to 50X Mixer input ports matched to 50X output port matched to 200X Doubly balanced Gilbert cell mixer (single ended input and output) Low power consumption Power down feature Small outline plastic surface mount package.
