LMH6715QML - Dual Wideband Video Op Amp

Texas Instruments

The LMH6715QML by Texas Instruments is a Dual Wideband Video Op Amp. Below is the official datasheet preview.

📥 Download Datasheet

LMH6715QML Dual Wideband Video Op Amp by Texas Instruments - Datasheet Preview — Official preview page of the **LMH6715QML** Dual Wideband Video Op Amp datasheet (Texas Instruments).

Datasheet Details

Part number	LMH6715QML
Manufacturer	Texas Instruments
File Size	724.89 KB
Description	Dual Wideband Video Op Amp
Datasheet	LMH6715QML-etcTI.pdf

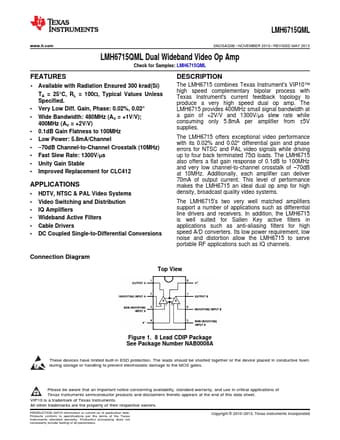

Additional preview pages of the LMH6715QML datasheet.

LMH6715QML Product details

Description

The LMH6715 combines Texas Instrument's VIP10™ high speed complementary bipolar process with Texas Instrument's current feedback topology to produce a very high speed dual op amp.

Features

1.
23 Available with Radiation Ensured 300 krad(Si) TA = 25°C, RL = 100Ω, Typical Values Unless Specified.
Very Low Diff. Gain, Phase: 0.02%, 0.02°.
Wide Bandwidth: 480MHz (AV = +1V/V); 400MHz (AV = +2V/V).
0.1dB Gain Flatness to 100MHz.
Low Power: 5.8mA/Channel.
70dB Channel-to-Channel Crosstalk (10MHz).
Fast Slew Rate: 1300V/μs.
Unity Gain Stable.
Improved Replacement for CLC412.
