LMH6714 - Wideband Video Op Amp

Texas Instruments

The LMH6714 by Texas Instruments is a Wideband Video Op Amp. Below is the official datasheet preview.

📥 Download Datasheet

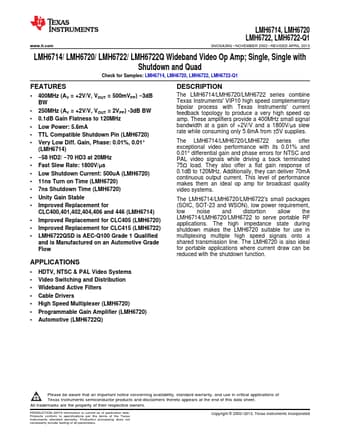

LMH6714 Wideband Video Op Amp by Texas Instruments - Datasheet Preview — Official preview page of the **LMH6714** Wideband Video Op Amp datasheet (Texas Instruments).

Datasheet Details

Part number	LMH6714
Manufacturer	Texas Instruments
File Size	2.02 MB
Description	Wideband Video Op Amp
Datasheet	LMH6714-etcTI.pdf
Additional preview pages of the LMH6714 datasheet.

LMH6714 Product details

Description

The LMH6714/LMH6720/LMH6722 series combine Texas Instruments' VIP10 high speed complementary bipolar process with Texas Instruments' current feedback topology to produce a very high speed op amp.

Features

1.
2 400MHz (AV = +2V/V, VOUT = 500mVPP).
3dB BW.
250MHz (AV = +2V/V, VOUT = 2VPP) -3dB BW.
0.1dB Gain Flatness to 120MHz.
Low Power: 5.6mA.
TTL Compatible Shutdown Pin (LMH6720).
Very Low Diff. Gain, Phase: 0.01%, 0.01° (LMH6714).
58 HD2/.
70 HD3 at 20MHz.
Fast Slew Rate: 1800V/μs.
Low Shutdown Current: 500uA (LMH6720).
11ns Turn on Time (LMH6720).
7ns Shutdown Time (LMH672.
