LMH6704 - 650MHz Selectable Gain Buffer

Texas Instruments

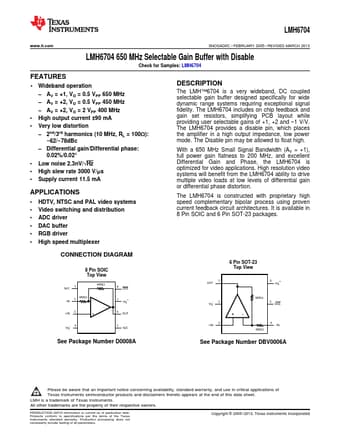

The LMH6704 by Texas Instruments is a 650MHz Selectable Gain Buffer. Below is the official datasheet preview.

📥 Download Datasheet

LMH6704 650MHz Selectable Gain Buffer by Texas Instruments - Datasheet Preview — Official preview page of the **LMH6704** 650MHz Selectable Gain Buffer datasheet (Texas Instruments).

Datasheet Details

Part number	LMH6704
Manufacturer	Texas Instruments
File Size	1.31 MB
Description	650MHz Selectable Gain Buffer
Datasheet	LMH6704-etcTI.pdf
Additional preview pages of the LMH6704 datasheet.

LMH6704 Product details

Description

The LMH™6704 is a very wideband, DC coupled selectable gain buffer designed specifically for wide dynamic range systems requiring exceptional signal fidelity. 1 V/V.

Features

1.
23 Wideband operation.
AV = +1, VO = 0.5 VPP 650 MHz.
AV = +2, VO = 0.5 VPP 450 MHz.
AV = +2, VO = 2 VPP 400 MHz.
High output current ±90 mA.
Very low distortion.
2nd/3rd harmonics (10 MHz, RL = 100Ω):.
62/.
78dBc.
Differential gain/Differential phase: 0.02%/0.02°.
Low noise 2.3nV/√Hz.
High slew rate 3000 V/μs.
Supply current 11.5 mA.
