LMH6702 - 1.7-GHz Ultra-Low Distortion Wideband Op Amp

Texas Instruments

The LMH6702 by Texas Instruments is a 1.7-GHz Ultra-Low Distortion Wideband Op Amp. Below is the official datasheet preview.

📥 Download Datasheet

LMH6702 1.7-GHz Ultra-Low Distortion Wideband Op Amp by Texas Instruments - Datasheet Preview — Official preview page of the **LMH6702** 1.7-GHz Ultra-Low Distortion Wideband Op Amp datasheet (Texas Instruments).

Datasheet Details

Part number	LMH6702
Manufacturer	Texas Instruments
File Size	1.67 MB
Description	1.7-GHz Ultra-Low Distortion Wideband Op Amp
Datasheet	LMH6702-etcTI.pdf

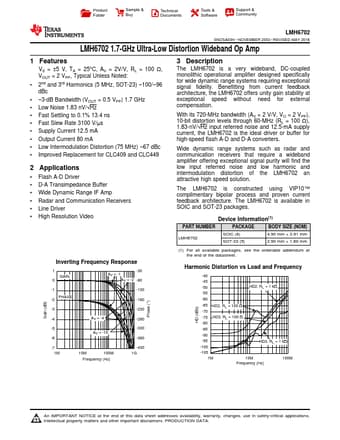

Additional preview pages of the LMH6702 datasheet.

LMH6702 Product details

Description

The LMH6702 is a very wideband, DC-coupled monolithic operational amplifier designed specifically for wide dynamic range systems requiring exceptional signal fidelity.

Features

VS 1 = ±5 V, TA = 25°C, AV = 2V/V, RL = 100 Ω, VOUT = 2 VPP, Typical Unless Noted:.
2nd and 3rd Harmonics (5 MHz, SOT-23).
100/.
96 dBc.
3-dB Bandwidth (VOUT = 0.5 VPP) 1.7 GHz.
Low Noise 1.83 nV/√Hz.
Fast Settling to 0.1% 13.4 ns.
Fast Slew Rate 3100 V/μs.
Supply Current 12.5 mA.
Output Current 80 mA.
Low Intermodulation Distortion (75 MHz).
67 dBc.
Improved Replacement for CLC409 an.
