LM4667MMBD, LM4667 - Filterless High Efficiency 1.3W Switching Audio Amplifier

Texas Instruments

The LM4667MMBD by Texas Instruments is a Filterless High Efficiency 1.3W Switching Audio Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

LM4667MMBD Filterless High Efficiency 1.3W Switching Audio Amplifier by Texas Instruments - Datasheet Preview — Official preview page of the **LM4667MMBD** Filterless High Efficiency 1.3W Switching Audio Amplifier datasheet (Texas Instruments).

Datasheet Details

Part number	LM4667MMBD, LM4667
Manufacturer	Texas Instruments
File Size	2.17 MB
Description	Filterless High Efficiency 1.3W Switching Audio Amplifier
Datasheet	LM4667-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM4667MMBD, LM4667. Please refer to the document for exact specifications by model.

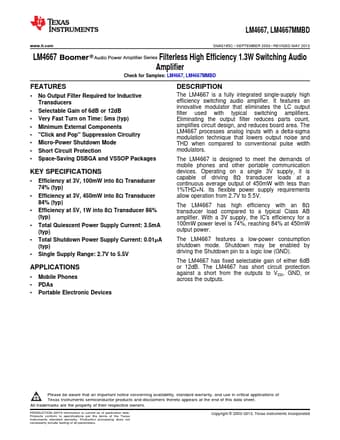

Additional preview pages of the LM4667MMBD datasheet.

LM4667MMBD Product details

Description

The LM4667 is a fully integrated single-supply high efficiency switching audio amplifier.

Features

1.
2 No Output Filter Required for Inductive Transducers.
Selectable Gain of 6dB or 12dB.
Very Fast Turn on Time: 5ms (typ).
Minimum External Components.
"Click and Pop" Suppression Circuitry.
Micro-Power Shutdown Mode.
Short Circuit Protection.
Space-Saving DSBGA and VSSOP Packages KEY.
