LM4664 - Filterless High Efficiency 1.1W Switching Audio Amplifier

National Semiconductor

The LM4664 by National Semiconductor is a Filterless High Efficiency 1.1W Switching Audio Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

LM4664 Filterless High Efficiency 1.1W Switching Audio Amplifier by National Semiconductor - Datasheet Preview — Official preview page of the **LM4664** Filterless High Efficiency 1.1W Switching Audio Amplifier datasheet (National Semiconductor).

Datasheet Details

Part number	LM4664
Manufacturer	National Semiconductor
File Size	517.61 KB
Description	Filterless High Efficiency 1.1W Switching Audio Amplifier
Datasheet	LM4664-NationalSemiconductor.pdf

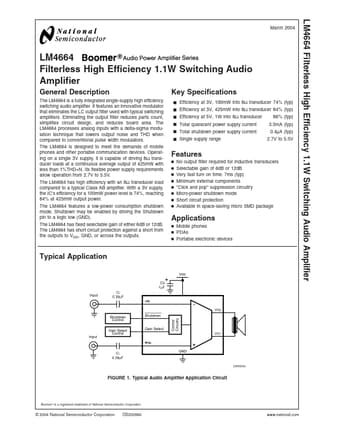

Additional preview pages of the LM4664 datasheet.

LM4664 Product details

Description

The LM4664 is a fully integrated single-supply high efficiency switching audio amplifier.

Features

an innovative modulator that eliminates the LC output filter used with typical switching amplifiers. Eliminating the output filter reduces parts count, simplifies circuit design, and reduces board area. The LM4664 processes analog inputs with a delta-sigma modulation technique that lowers output noise and THD when compared to conventional pulse width modulators. The LM4664 is designed to meet the demands of mobile phones and other portable communication devices. Operating on a single 3V supply,.
