LM46001 - 1-A Synchronous Step-Down Voltage Converter

Texas Instruments

The LM46001 by Texas Instruments is a 1-A Synchronous Step-Down Voltage Converter. Below is the official datasheet preview.

📥 Download Datasheet

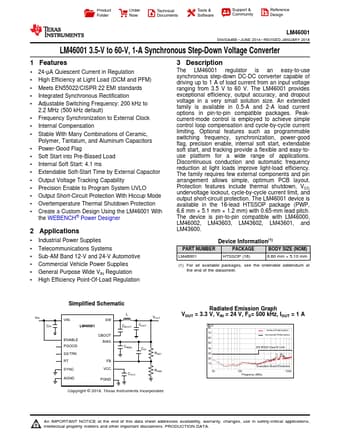

LM46001 1-A Synchronous Step-Down Voltage Converter by Texas Instruments - Datasheet Preview — Official preview page of the **LM46001** 1-A Synchronous Step-Down Voltage Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LM46001
Manufacturer	Texas Instruments
File Size	2.10 MB
Description	1-A Synchronous Step-Down Voltage Converter
Datasheet	LM46001-etcTI.pdf
Additional preview pages of the LM46001 datasheet.

LM46001 Product details

Description

The LM46001 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 1 A of load current from an input voltage ranging from 3.5 V to 60 V.

Features

1 24-µA Quiescent Current in Regulation.
High Efficiency at Light Load (DCM and PFM).
Meets EN55022/CISPR 22 EMI standards.
Integrated Synchronous Rectification.
Adjustable Switching Frequency: 200 kHz to 2.2 MHz (500 kHz default).
Frequency Synchronization to External Clock.
Internal Compensation.
Stable With Many Combinations of Ceramic, Polymer, Tantalum, and Aluminum Capacitors.
Power-Good Flag.
Soft St.
