LM46002-Q1 - 2-A Synchronous Step-Down Voltage Converter

Description

The LM46002-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2 A of load current from an input voltage ranging from 3.5 V to 60 V.

The LM46002-Q1 provides exceptional efficiency, output accuracy and drop-out voltage in a very small solution size.

Features

  • 1 Qualified for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM4610 Dual DC Operated Tone/Volume/Balance National Semiconductor
LM4651 Overture Audio Power Amplifier National Semiconductor
LM4652 Overture Audio Power Amplifier National Semiconductor
LM4663 2 Watt Stereo Class D Audio Power Amplifier National Semiconductor
LM4664 Filterless High Efficiency 1.1W Switching Audio Amplifier National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LM46002 2-A Synchronous Step-Down Voltage Converter
LM46000 0.5-A Synchronous Step-Down Voltage Converter
LM46000-Q1 0.5-A Synchronous Step-Down Voltage Converter
LM46001 1-A Synchronous Step-Down Voltage Converter
LM46001-Q1 1-A Synchronous Step-Down Voltage Converter

Full PDF Text Transcription

Click to expand full text

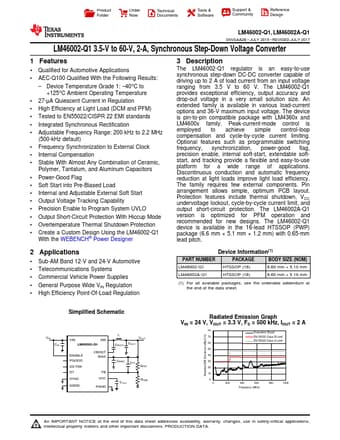

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design LM46002-Q1, LM46002A-Q1 SNVSAA2B – JULY 2015 – REVISED JULY 2017 LM46002-Q1 3.5-V to 60-V, 2-A, Synchronous Step-Down Voltage Converter 1 Features •1 Qualified for Automotive Applications • AEC-Q100 Qualified With the Following Results: – Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature • 27-µA Quiescent Current in Regulation • High Efficiency at Light Load (DCM and PFM) • Tested to EN55022/CISPR 22 EMI standards • Integrated Synchronous Rectification • Adjustable Frequency Range: 200 kHz to 2.
