LM46000 - 0.5-A Synchronous Step-Down Voltage Converter

Texas Instruments

The LM46000 by Texas Instruments is a 0.5-A Synchronous Step-Down Voltage Converter. Below is the official datasheet preview.

📥 Download Datasheet

LM46000 0.5-A Synchronous Step-Down Voltage Converter by Texas Instruments - Datasheet Preview — Official preview page of the **LM46000** 0.5-A Synchronous Step-Down Voltage Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LM46000
Manufacturer	Texas Instruments
File Size	2.09 MB
Description	0.5-A Synchronous Step-Down Voltage Converter
Datasheet	LM46000-etcTI.pdf

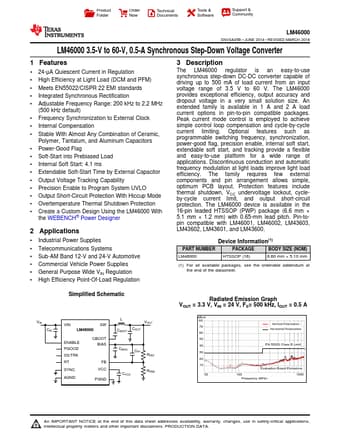

Additional preview pages of the LM46000 datasheet.

LM46000 Product details

Description

The LM46000 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 500 mA of load current from an input voltage range of 3.5 V to 60 V.

Features

1 24-µA Quiescent Current in Regulation.
High Efficiency at Light Load (DCM and PFM).
Meets EN55022/CISPR 22 EMI standards.
Integrated Synchronous Rectification.
Adjustable Frequency Range: 200 kHz to 2.2 MHz (500 kHz default).
Frequency Synchronization to External Clock.
Internal Compensation.
Stable With Almost Any Combination of Ceramic, Polymer, Tantalum, and Aluminum Capacitors.
Power-Good Flag.
Soft-S.
