ISO7830 - Triple Digital Isolators

Texas Instruments

📥 Download Datasheet

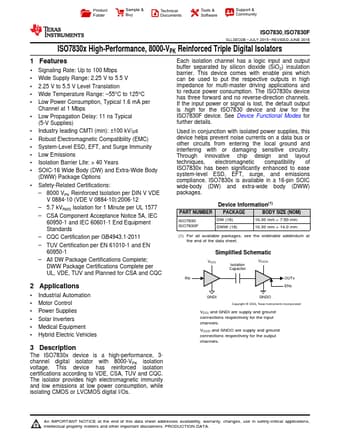

ISO7830 Datasheet Preview — Preview of ISO7830 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7830
Manufacturer	Texas Instruments
File Size	1.39 MB
Description	Triple Digital Isolators
Datasheet	ISO7830-etcTI.pdf

ISO7830 Product details

Description

The ISO7830x device is a high-performance, 3channel digital isolator with 8000-VPK isolation voltage.

Features

1 Signaling Rate: Up to 100 Mbps.
Wide Supply Range: 2.25 V to 5.5 V.
2.25 V to 5.5 V Level Translation.
Wide Temperature Range:.
55°C to 125°C.
Low Power Consumption, Typical 1.6 mA per Channel at 1 Mbps.
Low Propagation Delay: 11 ns Typical (5-V Supplies).
Industry leading CMTI (min): ±100 kV/μs.
Robust Electromagnetic Compatibility (EMC).
System-Level ESD, EFT, and Surge Immunity.
Low Emissions.
