ISO7820 - Dual Channel Digital Isolator

Texas Instruments

📥 Download Datasheet

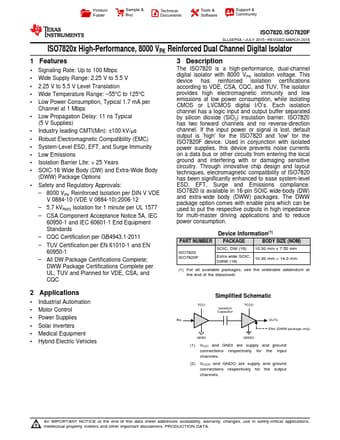

ISO7820 Datasheet Preview — Preview of ISO7820 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7820
Manufacturer	Texas Instruments
File Size	1.37 MB
Description	Dual Channel Digital Isolator
Datasheet	ISO7820-etcTI.pdf

ISO7820 Product details

Description

The ISO7820 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage.

Features

1 Signaling Rate: Up to 100 Mbps.
Wide Supply Range: 2.25 V to 5.5 V.
2.25 V to 5.5 V Level Translation.
Wide Temperature Range:.
55°C to 125°C.
Low Power Consumption, Typical 1.7 mA per Channel at 1 Mbps.
Low Propagation Delay: 11 ns Typical (5 V Supplies).
Industry leading CMTI(Min): ±100 kV/μs.
Robust Electromagnetic Compatibility (EMC).
System-Level ESD, EFT, and Surge Immunity.
Low Emissions.
