ISO-Ax-Px-Ox, ISO-U - Photoelectricity Isolation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO-Ax-Px-Ox, ISO-U. Please refer to the document for exact specifications by model.

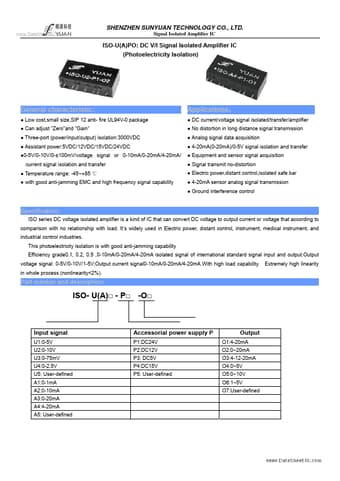

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number ISO-Ax-Px-Ox, ISO-U
Manufacturer Shenzhen Sunyuan
File Size 422.39 KB
Description Photoelectricity Isolation
Datasheet download datasheet ISO-U_ShenzhenSunyuan.pdf
Note This datasheet PDF includes multiple part numbers: ISO-Ax-Px-Ox, ISO-U.
Please refer to the document for exact specifications by model.

ISO-Ax-Px-Ox Product details

Description

ISO- U(A) - P -O Input signal U1:0-5V U2:0-10V U3:0-75mV U4:0-2.5V U5: User-defined A1:0-1mA A2:0-10mA A3:0-20mA A4:4-20mA A5: User-defined Accessorial power supply P P1:DC24V P2:DC12V P3: DC5V P4:DC15V P5: User-defined Output O1:4-20mA O2:0~20mA O3:4-12-20mA O4:0~5V O5:0~10V O6:1~5V O7:User-defined SHENZHEN SUNYUAN TECHNOLOGY CO., LTD.www.DataSheet4U.com Signal Isolated Amplifier IC Example: Example 1: Input 0-5V ; power supply:24VDC ,Output 4-20mA Part numbe
