ISO7810 - Single-Channel Digital Isolator

Texas Instruments

📥 Download Datasheet

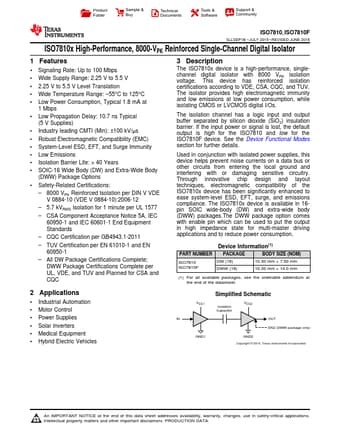

ISO7810 Datasheet Preview — Preview of ISO7810 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7810
Manufacturer	Texas Instruments
File Size	1.91 MB
Description	Single-Channel Digital Isolator
Datasheet	ISO7810-etcTI.pdf

ISO7810 Product details

Description

The ISO7810x device is a high-performance, singlechannel digital isolator with 8000 VPK isolation voltage.

Features

1 Signaling Rate: Up to 100 Mbps.
Wide Supply Range: 2.25 V to 5.5 V.
2.25 V to 5.5 V Level Translation.
Wide Temperature Range:.
55°C to 125°C.
Low Power Consumption, Typical 1.8 mA at 1 Mbps.
Low Propagation Delay: 10.7 ns Typical (5 V Supplies).
Industry leading CMTI (Min): ±100 kV/μs.
Robust Electromagnetic Compatibility (EMC).
System-Level ESD, EFT, and Surge Immunity.
Low Emissions.
I.
