DS32EV400 - Quad Equalizer

Name: DS32EV400
SKU: DS32EV400-1426333

Texas Instruments

📥 Download Datasheet

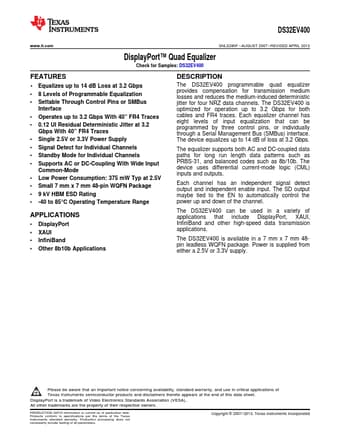

DS32EV400 Datasheet Preview — Preview of DS32EV400 PDF

Datasheet Details

Part number	DS32EV400
Manufacturer	Texas Instruments
File Size	1.47 MB
Description	Quad Equalizer
Datasheet	DS32EV400-etcTI.pdf

DS32EV400 Product details

Description

The DS32EV400 programmable quad equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for four NRZ data channels.

Features

1.
23 Equalizes up to 14 dB Loss at 3.2 Gbps.
8 Levels of Programmable Equalization.
Settable Through Control Pins or SMBus Interface.
Operates up to 3.2 Gbps With 40” FR4 Traces.
0.12 UI Residual Deterministic Jitter at 3.2 Gbps With 40” FR4 Traces.
Single 2.5V or 3.3V Power Supply.
Signal Detect for Individual Channels.
Standby Mode for Individual Channels.
Supports AC or DC-Coupling With Wide Input Common-Mode.
