DS32EL0421 - FPGA-Link Serializer

Name: DS32EL0421
SKU: DS32EL0421-1426336

Texas Instruments

📥 Download Datasheet

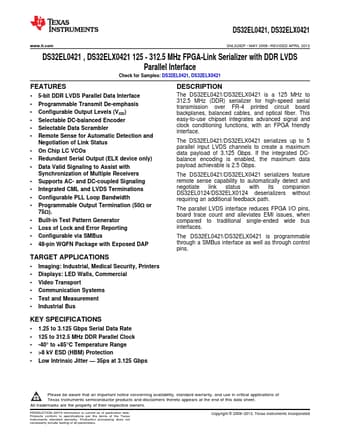

DS32EL0421 Datasheet Preview — Preview of DS32EL0421 PDF

Datasheet Details

Part number	DS32EL0421
Manufacturer	Texas Instruments
File Size	2.53 MB
Description	FPGA-Link Serializer
Datasheet	DS32EL0421-etcTI.pdf

DS32EL0421 Product details

Description

The DS32EL0421/DS32ELX0421 is a 125 MHz to 312.5 MHz (DDR) serializer for high-speed serial transmission over FR-4 printed circuit board backplanes, balanced cables, and optical fiber.

Features

1.
2 5-bit DDR LVDS Parallel Data Interface.
Programmable Transmit De-emphasis.
Configurable Output Levels (VOD).
Selectable DC-balanced Encoder.
Selectable Data Scrambler.
Remote Sense for Automatic Detection and Negotiation of Link Status.
On Chip LC VCOs.
Redundant Serial Output (ELX device only).
Data Valid Signaling to Assist with Synchronization of Multiple Receivers.
Supports AC- and DC-coupled Signal.
