DS32EV100 - Programmable Single Equalizer

Name: DS32EV100
SKU: DS32EV100-1426332

Texas Instruments

📥 Download Datasheet

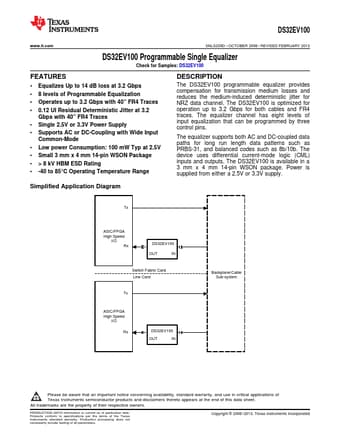

DS32EV100 Datasheet Preview — Preview of DS32EV100 PDF

Datasheet Details

Part number	DS32EV100
Manufacturer	Texas Instruments
File Size	1.47 MB
Description	Programmable Single Equalizer
Datasheet	DS32EV100-etcTI.pdf

DS32EV100 Product details

Description

The DS32EV100 programmable equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for NRZ data channel.

Features

1.
2 Equalizes Up to 14 dB loss at 3.2 Gbps.
8 levels of Programmable Equalization.
Operates up to 3.2 Gbps with 40” FR4 Traces.
0.12 UI Residual Deterministic Jitter at 3.2 Gbps with 40” FR4 Traces.
Single 2.5V or 3.3V Power Supply.
Supports AC or DC-Coupling with Wide Input Common-Mode.
Low power Consumption: 100 mW Typ at 2.5V.
Small 3 mm x 4 mm 14-pin WSON Package.
> 8 kV HBM ESD Rating.
-40 to 85°C Oper.
