DS32EL0124 - FPGA-Link Deserializer

Name: DS32EL0124
SKU: DS32EL0124-1426334

Texas Instruments

📥 Download Datasheet

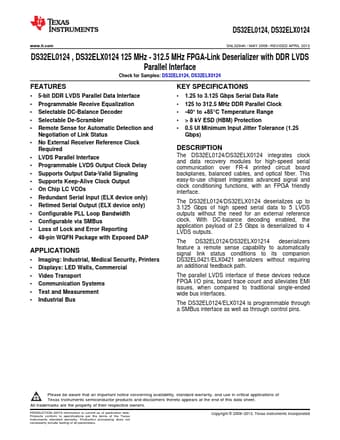

DS32EL0124 Datasheet Preview — Preview of DS32EL0124 PDF

Datasheet Details

Part number	DS32EL0124
Manufacturer	Texas Instruments
File Size	2.68 MB
Description	FPGA-Link Deserializer
Datasheet	DS32EL0124-etcTI.pdf

DS32EL0124 Product details

Description

The DS32EL0124/DS32ELX0124 integrates clock and data recovery modules for high-speed serial communication over FR-4 printed circuit board backplanes, balanced cables, and optical fiber.

Features

1.
2 5-bit DDR LVDS Parallel Data Interface.
Programmable Receive Equalization.
Selectable DC-Balance Decoder.
Selectable De-Scrambler.
Remote Sense for Automatic Detection and Negotiation of Link Status.
No External Receiver Reference Clock Required.
LVDS Parallel Interface.
Programmable LVDS Output Clock Delay.
Supports Output Data-Valid Signaling.
Supports Keep-Alive Clock Output.
On Chip LC VCOs.
