DP83640TVV, DP83640 - IEEE 1588 Precision Time Protocol Transceiver

Texas Instruments

The DP83640TVV by Texas Instruments is a IEEE 1588 Precision Time Protocol Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

DP83640TVV IEEE 1588 Precision Time Protocol Transceiver by Texas Instruments - Datasheet Preview — Official preview page of the **DP83640TVV** IEEE 1588 Precision Time Protocol Transceiver datasheet (Texas Instruments).

Datasheet Details

Part number	DP83640TVV, DP83640
Manufacturer	Texas Instruments
File Size	1.90 MB
Description	IEEE 1588 Precision Time Protocol Transceiver
Datasheet	DP83640-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DP83640TVV, DP83640. Please refer to the document for exact specifications by model.

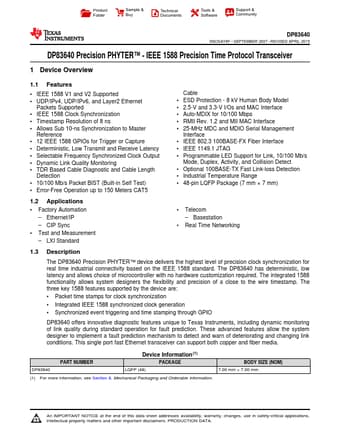

Additional preview pages of the DP83640TVV datasheet.

DP83640TVV Product details

Description

The DP83640 Precision PHYTER™ device delivers the highest level of precision clock synchronization for real time industrial connectivity based on the IEEE 1588 standard.

Features

1.
IEEE 1588 V1 and V2 Supported.
UDP/IPv4, UDP/IPv6, and Layer2 Ethernet Packets Supported.
IEEE 1588 Clock Synchronization.
Timestamp Resolution of 8 ns.
Allows Sub 10-ns Synchronization to Master Reference.
12 IEEE 1588 GPIOs for Trigger or Capture.
Deterministic, Low Transmit and Receive Latency.
Selectable Frequency Synchronized Clock Output.
Dynamic Link Quality Monitoring.
TDR Based Cable Diagnostic.
