DP83620 - Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver

Texas Instruments

The DP83620 by Texas Instruments is a Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

DP83620 Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver by Texas Instruments - Datasheet Preview — Official preview page of the **DP83620** Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver datasheet (Texas Instruments).

Datasheet Details

Part number	DP83620
Manufacturer	Texas Instruments
File Size	1.41 MB
Description	Industrial Temperature Single Port 10/100 Mbps Ethernet Physical Layer Transceiver
Datasheet	DP83620-etcTI.pdf

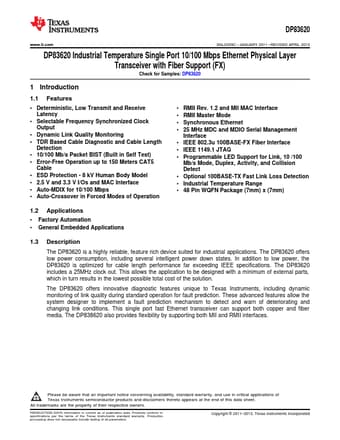

Additional preview pages of the DP83620 datasheet.

DP83620 Product details

Description

The DP83620 is a highly reliable, feature rich device suited for industrial applications.

Features

12.
Deterministic, Low Transmit and Receive Latency.
Selectable Frequency Synchronized Clock Output.
Dynamic Link Quality Monitoring.
TDR Based Cable Diagnostic and Cable Length Detection.
10/100 Mb/s Packet BIST (Built in Self Test).
Error-Free Operation up to 150 Meters CAT5 Cable.
ESD Protection - 8 kV Human Body Model.
2.5 V and 3.3 V I/Os and MAC Interface.
Auto-MDIX for 10/100 Mbps.
Auto-Crossover in.
