DP83630 - IEEE 1588 Precision Time Protocol Transceiver

Texas Instruments

The DP83630 by Texas Instruments is a IEEE 1588 Precision Time Protocol Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

DP83630 IEEE 1588 Precision Time Protocol Transceiver by Texas Instruments - Datasheet Preview — Official preview page of the **DP83630** IEEE 1588 Precision Time Protocol Transceiver datasheet (Texas Instruments).

Datasheet Details

Part number	DP83630
Manufacturer	Texas Instruments
File Size	1.55 MB
Description	IEEE 1588 Precision Time Protocol Transceiver
Datasheet	DP83630-etcTI.pdf

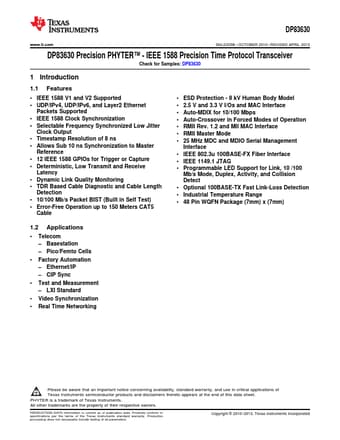

Additional preview pages of the DP83630 datasheet.

DP83630 Product details

Description

The DP83630 Precision PHYTER™ device delivers the highest level of precision clock synchronization for real time industrial connectivity based on the IEEE 1588 standard.

Features

123.
IEEE 1588 V1 and V2 Supported.
UDP/IPv4, UDP/IPv6, and Layer2 Ethernet Packets Supported.
IEEE 1588 Clock Synchronization.
Selectable Frequency Synchronized Low Jitter Clock Output.
Timestamp Resolution of 8 ns.
Allows Sub 10 ns Synchronization to Master Reference.
12 IEEE 1588 GPIOs for Trigger or Capture.
Deterministic, Low Transmit and Receive Latency.
Dynamic Link Quality Monitoring.
TDR Based Cabl.
