DP83630SQ, DP83630 - IEEE 1588 Precision Time Protocol Transceiver

Texas Instruments

The DP83630SQ by Texas Instruments is a IEEE 1588 Precision Time Protocol Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

DP83630SQ IEEE 1588 Precision Time Protocol Transceiver by Texas Instruments - Datasheet Preview — Official preview page of the **DP83630SQ** IEEE 1588 Precision Time Protocol Transceiver datasheet (Texas Instruments).

Datasheet Details

Part number	DP83630SQ, DP83630
Manufacturer	Texas Instruments
File Size	1.55 MB
Description	IEEE 1588 Precision Time Protocol Transceiver
Datasheet	DP83630-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DP83630SQ, DP83630. Please refer to the document for exact specifications by model.

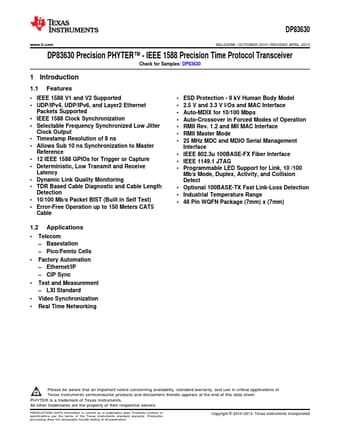

Additional preview pages of the DP83630SQ datasheet.

DP83630SQ Product details

Description

The DP83630 Precision PHYTER™ device delivers the highest level of precision clock synchronization for real time industrial connectivity based on the IEEE 1588 standard.

Features

123.
IEEE 1588 V1 and V2 Supported.
UDP/IPv4, UDP/IPv6, and Layer2 Ethernet Packets Supported.
IEEE 1588 Clock Synchronization.
Selectable Frequency Synchronized Low Jitter Clock Output.
Timestamp Resolution of 8 ns.
Allows Sub 10 ns Synchronization to Master Reference.
12 IEEE 1588 GPIOs for Trigger or Capture.
Deterministic, Low Transmit and Receive Latency.
Dynamic Link Quality Monitoring.
TDR Based Cabl.
