FR105 - Fast Recovery Rectifier

Product Overview

Yangzhou Yangjie

📥 Download Datasheet

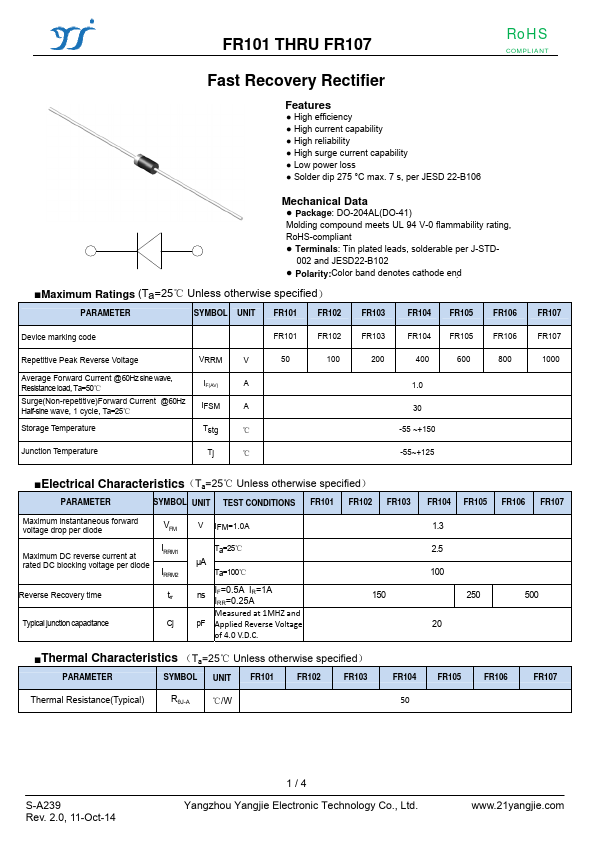

FR105 Fast Recovery Rectifier by Yangzhou Yangjie - Datasheet Preview — Datasheet preview – FR105

Datasheet Details

Part number	FR105
Manufacturer	Yangzhou Yangjie
File Size	208.24 KB
Description	Fast Recovery Rectifier
Datasheet	FR105 Datasheet
Note	This datasheet PDF includes multiple part numbers: FR105, FR101. Please refer to the document for exact specifications by model.

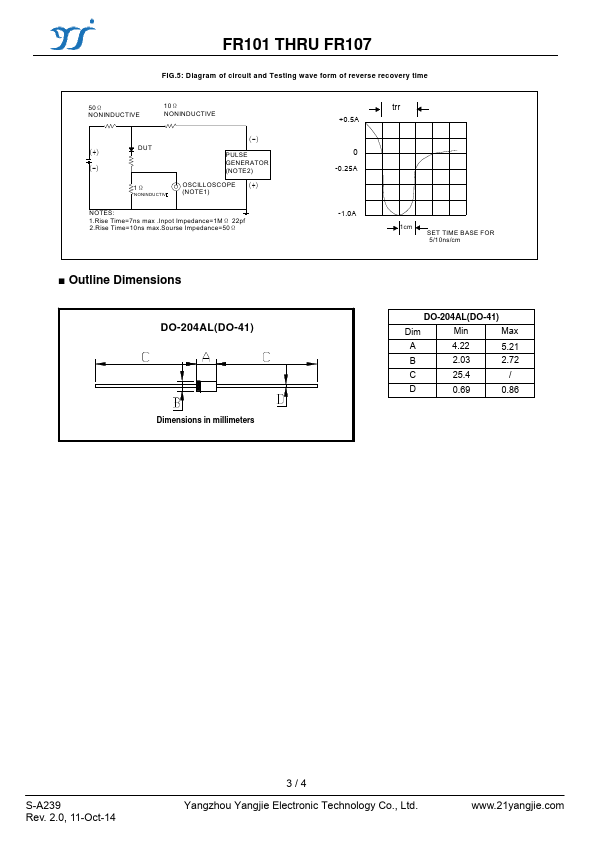

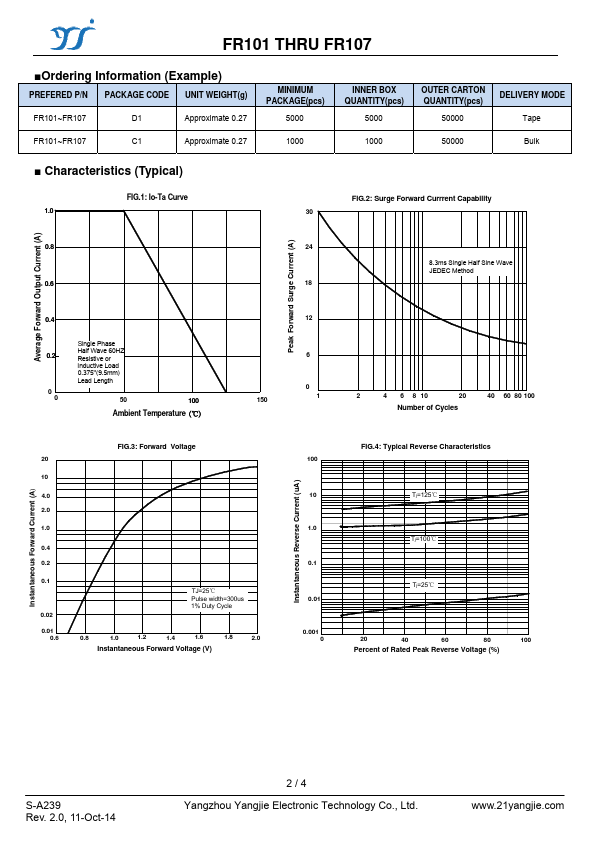

Additional preview pages of the FR105 datasheet.

Product details

Features

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.
Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102.
Polarity:Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless otherwise specified）.
