FR105S - FAST RECOVERY RECTIFIERS

Download the FR105S datasheet PDF. This datasheet also covers the FR101S variant, as both devices belong to the same fast recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.025(0.65) 0.021(0.55) DIA. 1.0 (25.4) MIN. Dimensions in inches and (millimeters).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FR101S-Shunye.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number FR105S
Manufacturer Shunye
File Size 949.47 KB
Description FAST RECOVERY RECTIFIERS
Datasheet download datasheet FR105S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FR105S Fast Recovery Rectifiers Taiwan Semiconductor
FR105S FAST RECOVERY RECTIFIERS SEMTECH
FR105S FAST RECOVERY RECTIFIERS CUMSUMI
FR105S FAST RECOVERY RECTIFIERS GOOD ELECTRONIC
FR105SG Glass Passivated Fast Recovery Rectifiers Taiwan Semiconductor

Other Datasheets by Shunye

Part Number Description
FR101S FAST RECOVERY RECTIFIERS
FR102S FAST RECOVERY RECTIFIERS
FR103S FAST RECOVERY RECTIFIERS
FR104S FAST RECOVERY RECTIFIERS
FR106S FAST RECOVERY RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

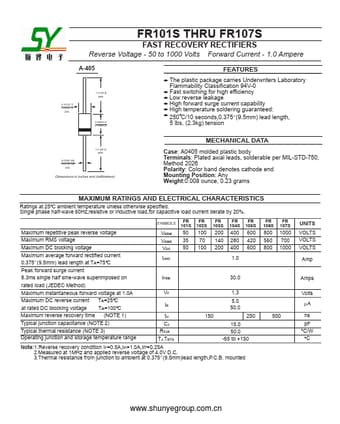

FR101S THRU FR107S FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere A-405 0.107(2.7) 0.080(2.0) DIA. 1.0 (25.4) MIN. 0.205(5.2) 0.166(4.2) FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 0.025(0.65) 0.021(0.55) DIA. 1.0 (25.4) MIN. Dimensions in inches and (millimeters) MECHANICAL DATA Case: A0405 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.008 ounce, 0.
