FR105SG, FR101SG - Glass Passivated Fast Recovery Rectifiers

Taiwan Semiconductor

The FR105SG by Taiwan Semiconductor is a Glass Passivated Fast Recovery Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

FR105SG Glass Passivated Fast Recovery Rectifiers by Taiwan Semiconductor - Datasheet Preview — Official preview page of the **FR105SG** Glass Passivated Fast Recovery Rectifiers datasheet (Taiwan Semiconductor).

Datasheet Details

Part number	FR105SG, FR101SG
Manufacturer	Taiwan Semiconductor
File Size	349.66 KB
Description	Glass Passivated Fast Recovery Rectifiers
Datasheet	FR101SG-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FR105SG, FR101SG. Please refer to the document for exact specifications by model.

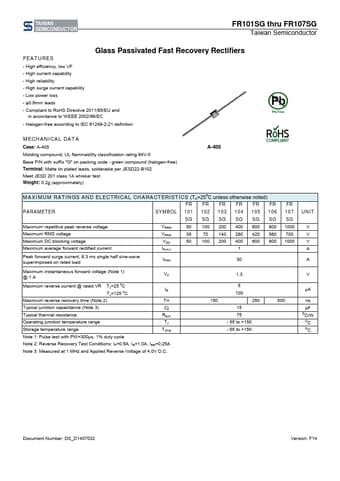

Additional preview pages of the FR105SG datasheet.

FR105SG Product details

Description

Green compound AVERAGE FORWARD CURRENT (A) 1.5 1.25 1 0.75 0.5 0.25 0 0 FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE RESISTIVE OR INDUCTIVE LOAD 25 50 75 100 125 150 AMBIENT TEMPERATURE (oC) INSTANTANEOUS REVERSE CURRENT (μA) 1000 FIG.2 TYPICAL REVERSE CHARACTERISTICS 100 TJ=125oC 10 TJ=75oC 1 0.1 0 TJ=25oC 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) PEAK FORWARD SURGE CURRENT (A) FIG.3 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 50 40 30 20 10 0 1 8.3m

Features

- High efficiency, low VF - High current capability - High reliability - High surge current capability - Low power loss - φ0.6mm leads - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.
