FR101 - Fast Recovery Rectifier

Product Overview

Yangzhou Yangjie

Part number	FR101
Manufacturer	Yangzhou Yangjie
File Size	208.24 KB
Description	Fast Recovery Rectifier
Datasheet	FR101 Datasheet

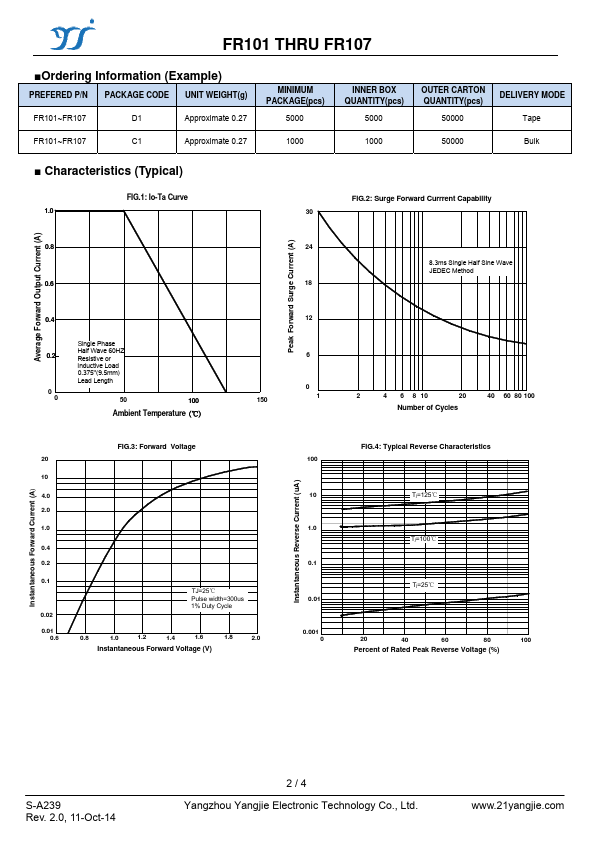

Additional preview pages of the FR101 datasheet.

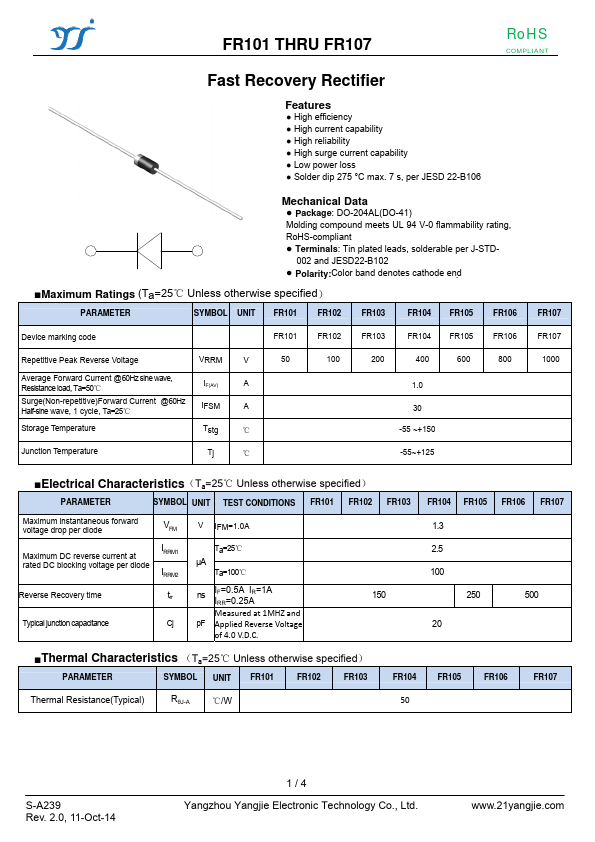

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.

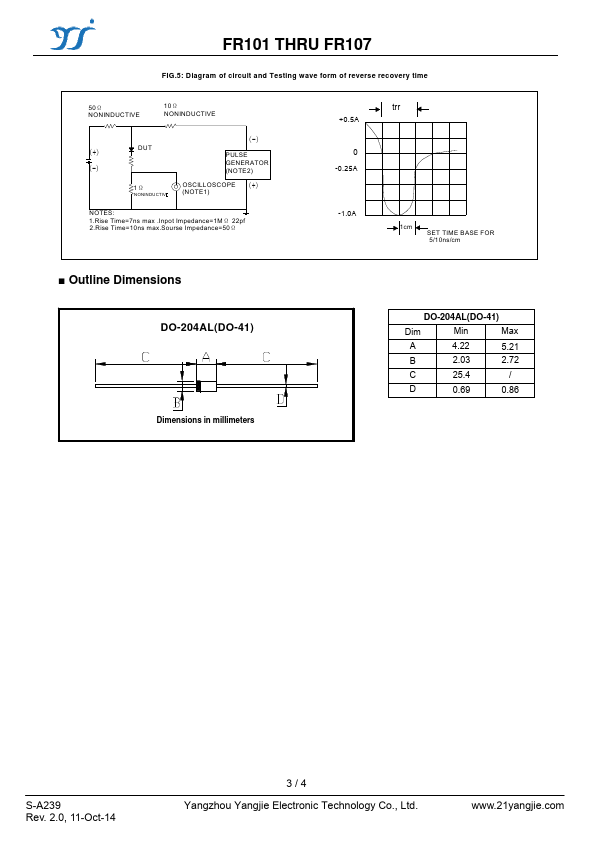

Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102.
Polarity:Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless otherwise specified）.
