XP65AN2K5IN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65AN2K5IN Description

XP65AN2K5IN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP65AN2K5 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65AN2K5IN Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 650V 2.5Ω 4A G DS TO-220CFM-NL(IN) Absolute

📥 Download Datasheet

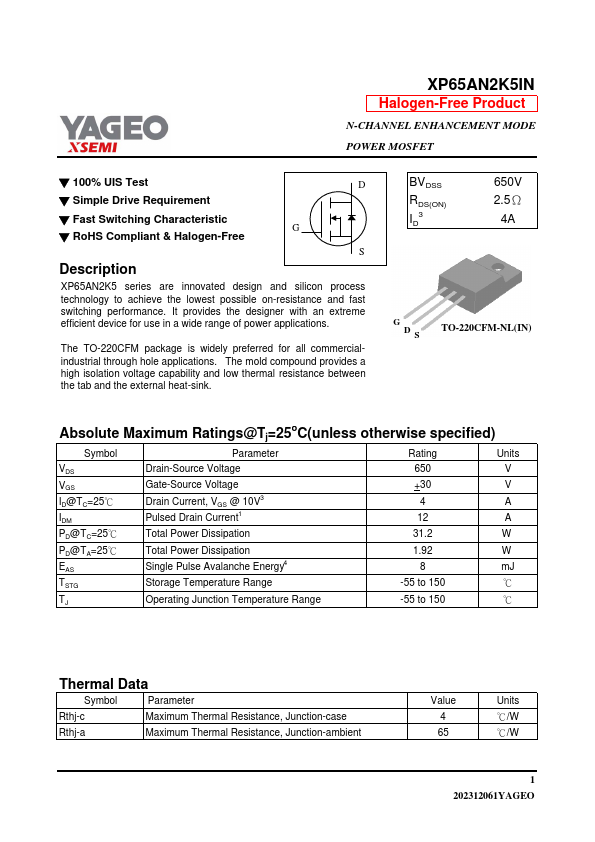

Preview of XP65AN2K5IN PDF

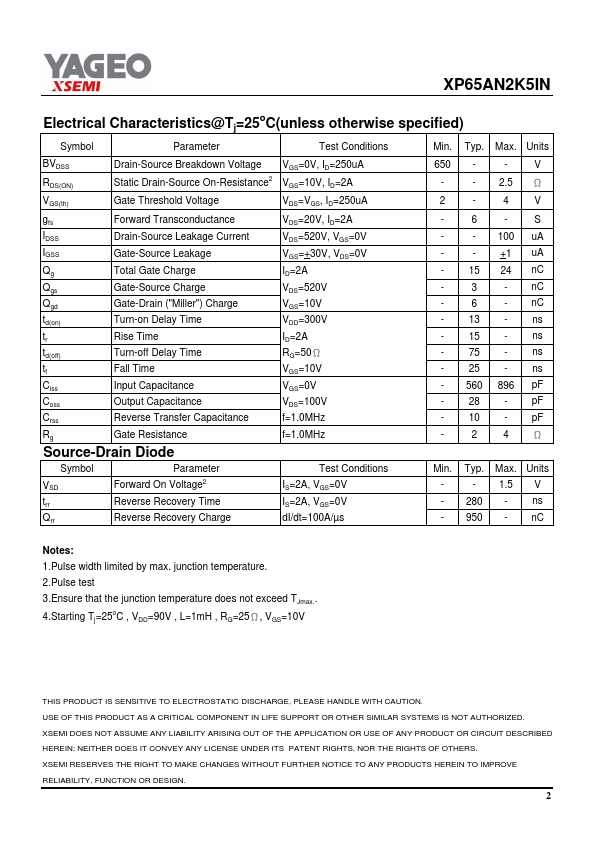

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65AN2K5IN
Manufacturer
YAGEO
File Size
196.91 KB
Datasheet
XP65AN2K5IN-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
