XP65AN2K5H - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65AN2K5H Description

XP65AN2K5H Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP65AN2K5 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65AN2K5H Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 650V 2.5Ω 4A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating

📥 Download Datasheet

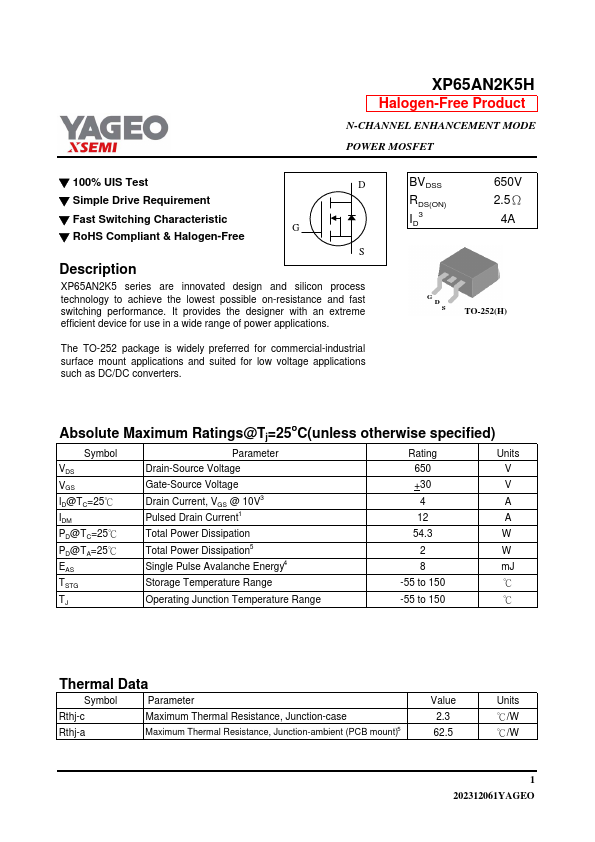

Preview of XP65AN2K5H PDF

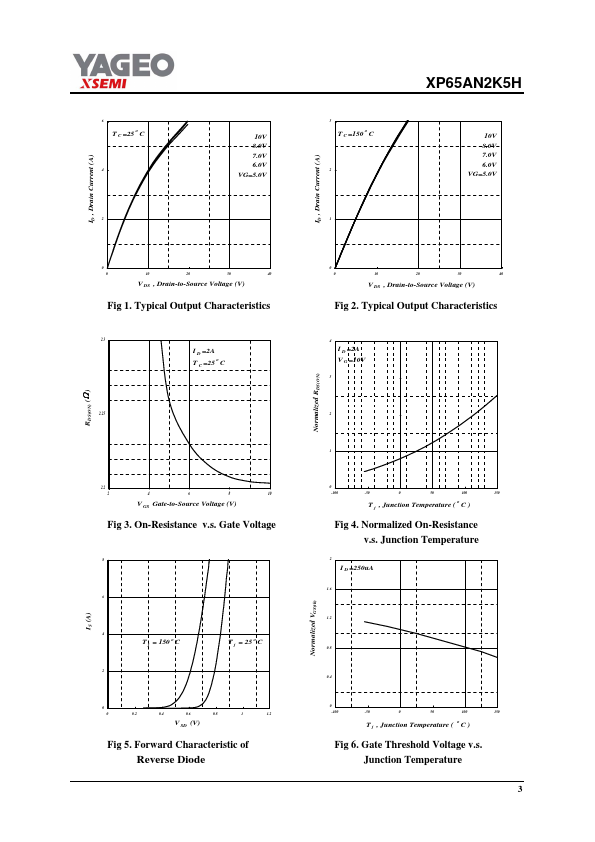

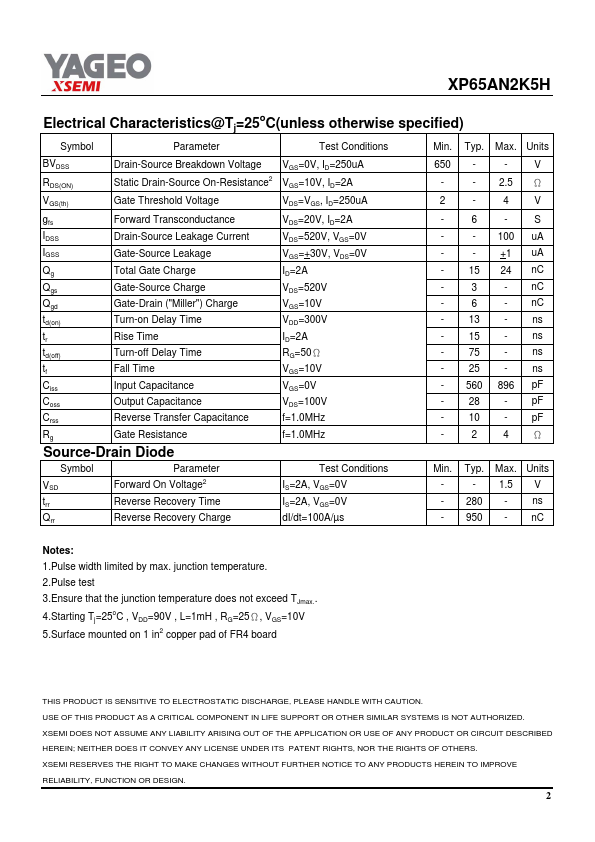

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65AN2K5H
Manufacturer
YAGEO
File Size
172.81 KB
Datasheet
XP65AN2K5H-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
