XP65AN1K2J - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65AN1K2J Description

XP65AN1K2J Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP65AN1K2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65AN1K2J Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID3 650V 1.2Ω 7A G DS TO-251(J) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 650 V

📥 Download Datasheet

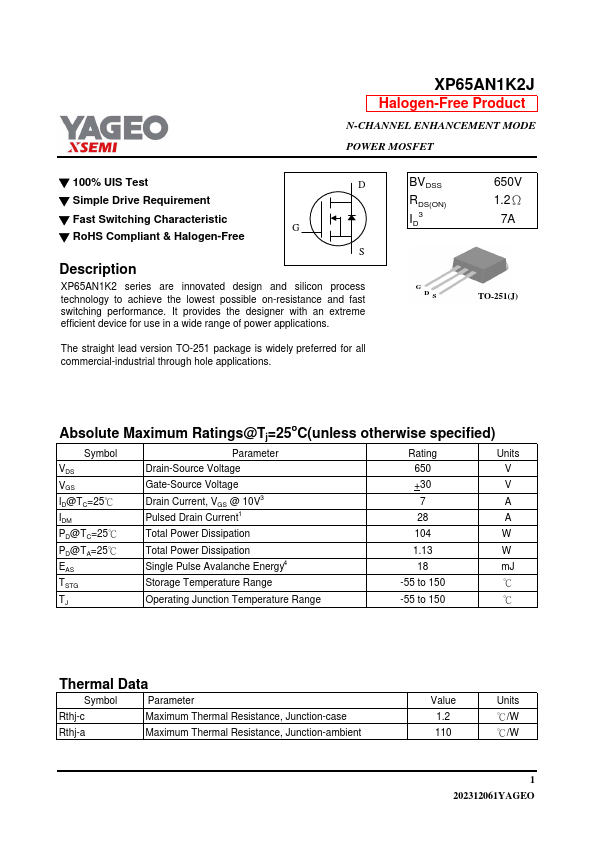

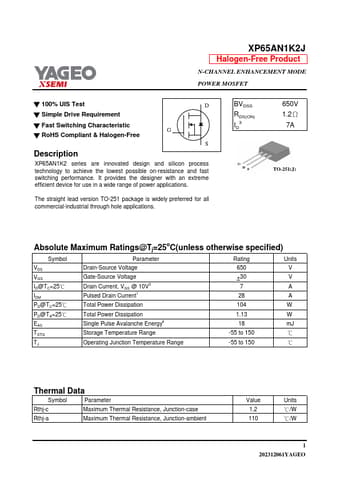

Preview of XP65AN1K2J PDF

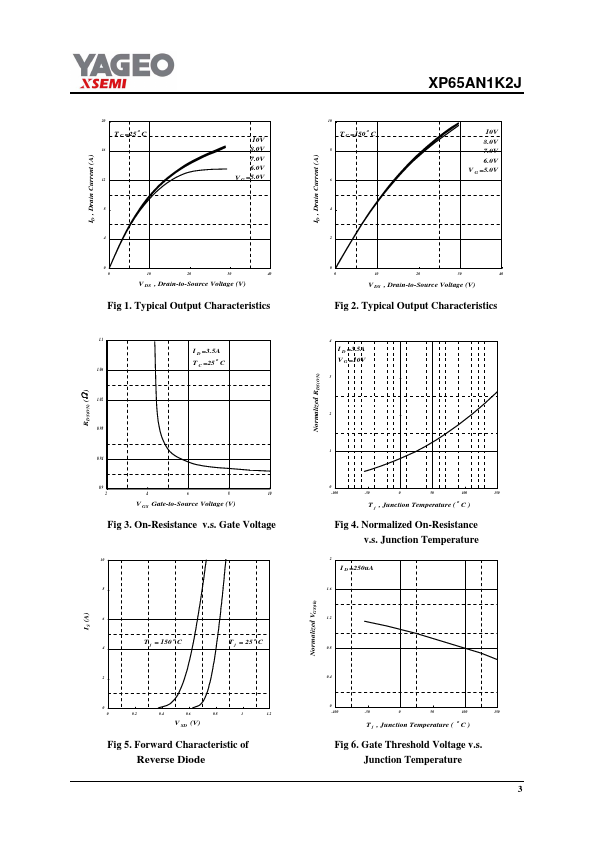

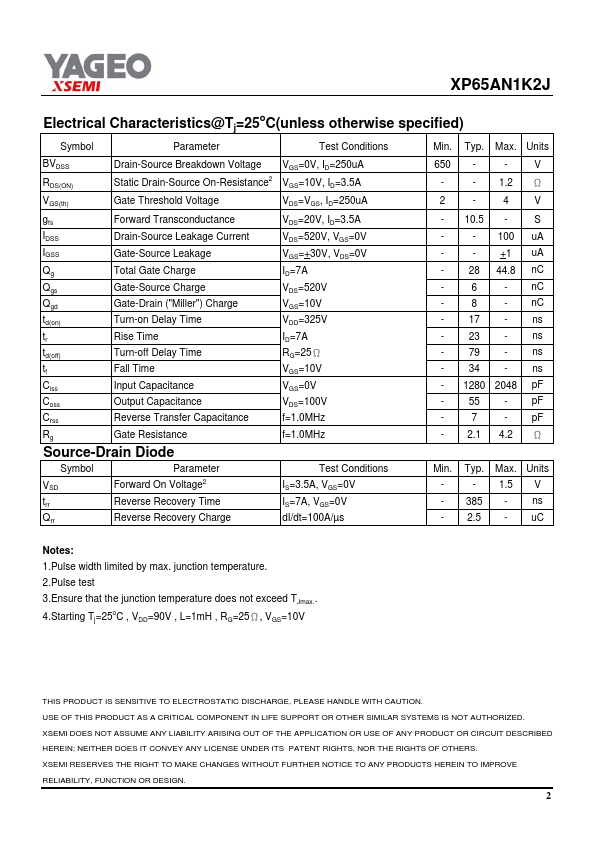

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65AN1K2J
Manufacturer
YAGEO
File Size
135.99 KB
Datasheet
XP65AN1K2J-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
