XP65AN1K2S - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65AN1K2S Description

XP65AN1K2S Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP65AN1K2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65AN1K2S Applications

* The TO-263 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID3 650V 1.2Ω 7A G D S TO-263(S) Absolute Maximum Ratings@Tj=25oC(unless o

📥 Download Datasheet

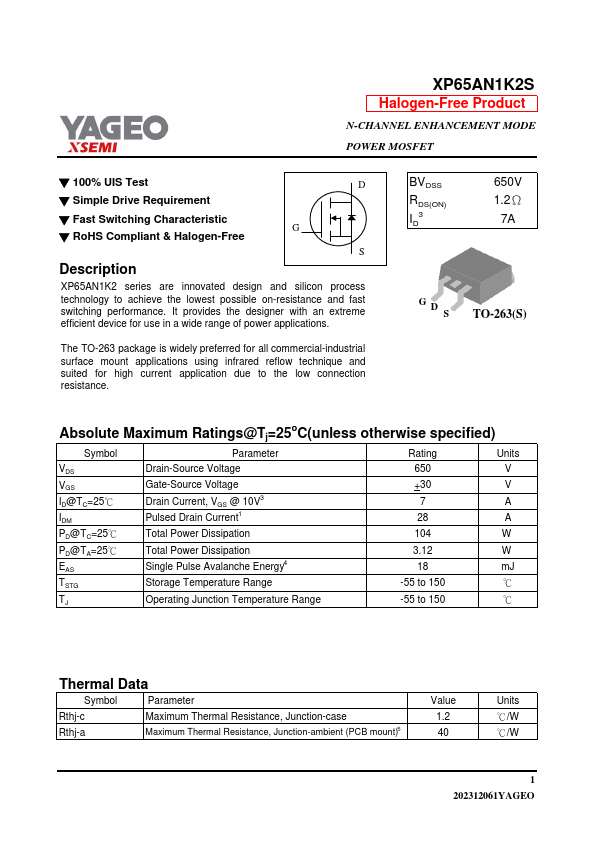

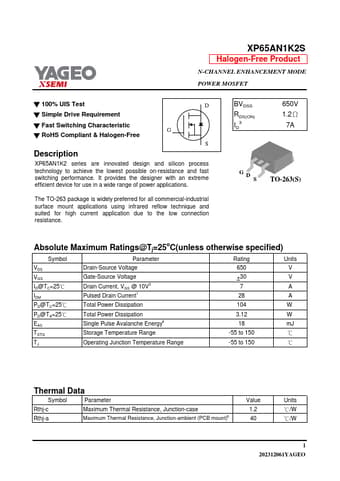

Preview of XP65AN1K2S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65AN1K2S
Manufacturer
YAGEO
File Size
254.23 KB
Datasheet
XP65AN1K2S-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
