XP65AN1K2IN - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65AN1K2IN Description

XP65AN1K2IN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP65AN1K2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP65AN1K2IN Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 650V 1.2Ω 7A G DS TO-220CFM-NL(IN) Absolute

📥 Download Datasheet

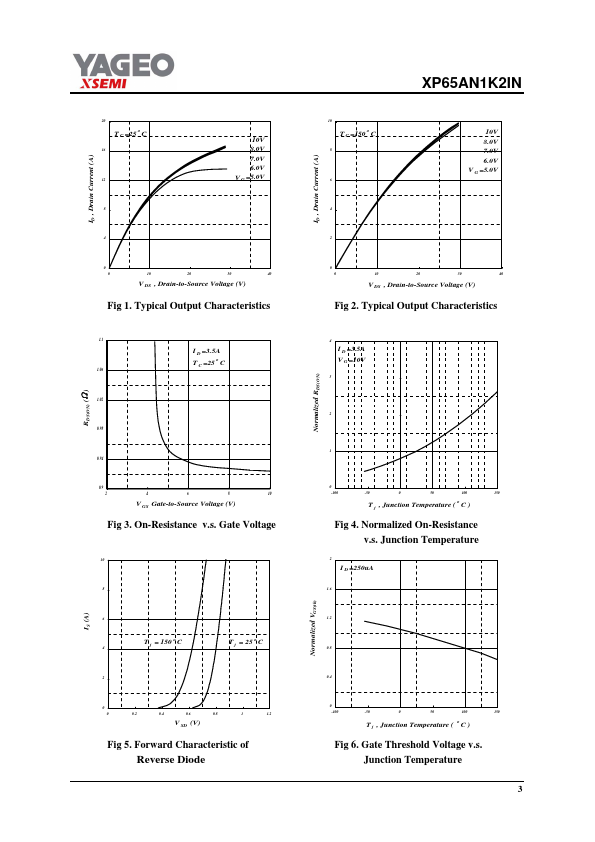

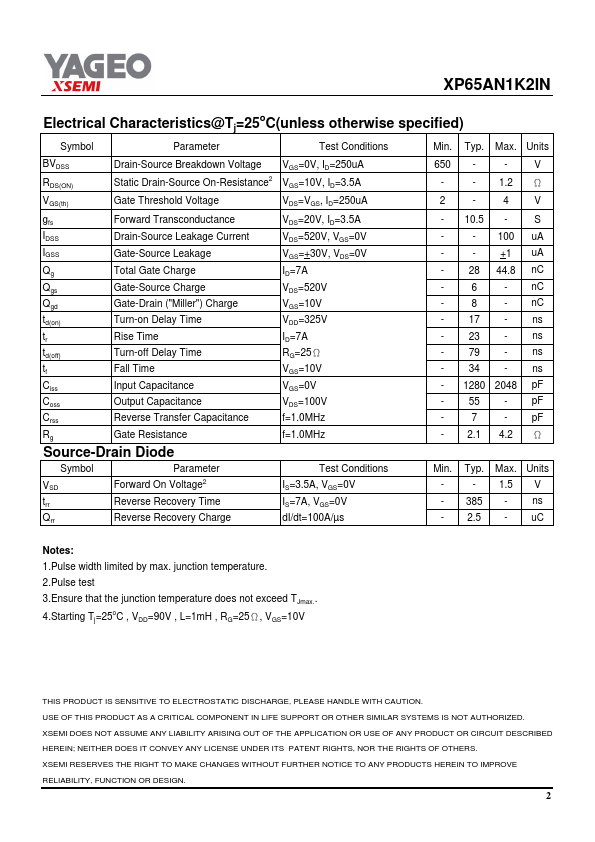

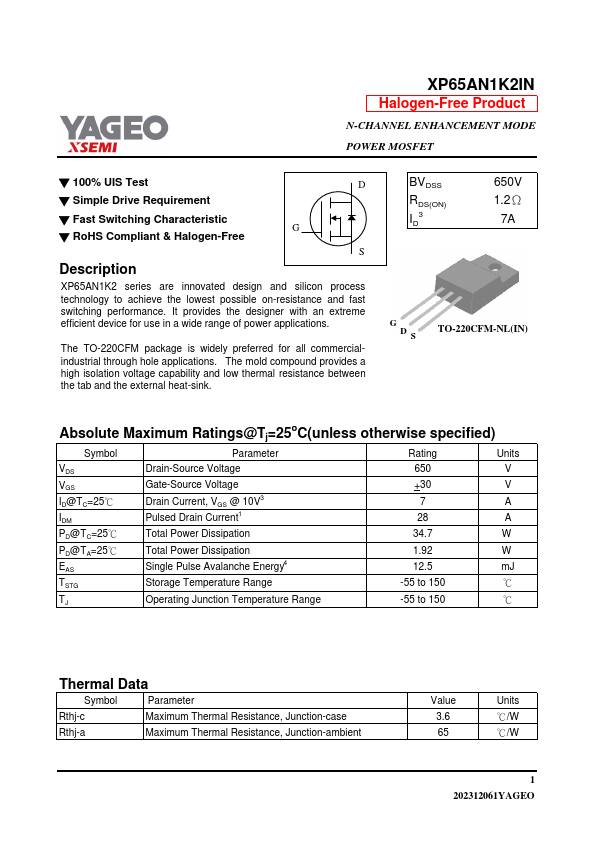

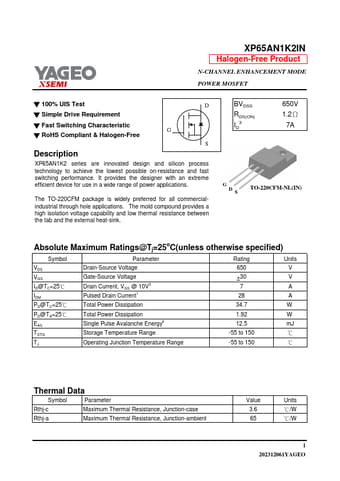

Preview of XP65AN1K2IN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP65AN1K2IN
Manufacturer
YAGEO
File Size
197.16 KB
Datasheet
XP65AN1K2IN-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
