XL2576 - 3A 52KHz 40V Buck DC-DC Converter

Name: XL2576
SKU: XL2576-825418

XLSEMI

📥 Download Datasheet

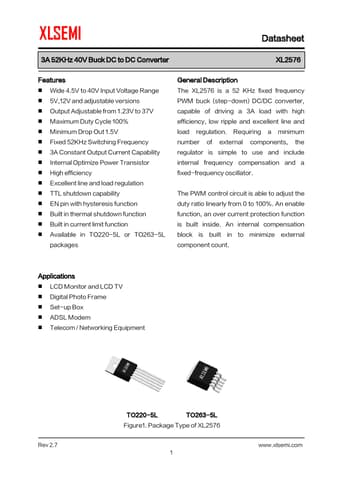

XL2576 Datasheet Preview — Preview of XL2576 PDF

Datasheet Details

Part number	XL2576
Manufacturer	XLSEMI
File Size	429.51 KB
Description	3A 52KHz 40V Buck DC-DC Converter
Datasheet	XL2576-XLSEMI.pdf

XL2576 Product details

Description

The XL2576 is a 52 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation.

Features

Wide 4.5V to 40V Input Voltage Range.
5V,12V and adjustable versions.
Output Adjustable from 1.23V to 37V.
Maximum Duty Cycle 100%.
Minimum Drop Out 1.5V.
Fixed 52KHz Switching Frequency.
3A Constant Output Current Capability.
Internal Optimize Power Transistor.
High efficiency.
Excellent line and load regulation.
TTL shutdown capability.
EN pin with hysteresis function.
Built in thermal shutdown function.
Built in current li.
