XL2005 - 2A 160KHz 32V Buck DC/DC Converter

Description

The XL2005 is a 160 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • n n n n n n n n n n n n n n n n Wide 8V to 32V Input Voltage Range Output Adjustable from 0.8V to 26V Minimum Drop Out 0.3V Fixed 160KHz Switching Frequency Maximum 2A Output Current Capability Internal Optimize Power MOSFET Excellent line and load regulation High efficiency up to 92% TTL shutdown capability EN pin with hysteresis function With output constant current loop Built in Constant Voltage (CV) Loop Built in Constant Current (CC) Loop Built in thermal shutdown function Built in output s.

📥 Download Datasheet

Datasheet Details

Part number XL2005
Manufacturer XLSEMI
File Size 174.10 KB
Description 2A 160KHz 32V Buck DC/DC Converter
Datasheet download datasheet XL2005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL2403 USB 2.4G SOC XL
XL2404 2.4G SOC XL
XL24C02 2048-Bit Serial Electrically Erasable PROM Exel Microelectronics
XL24C04 Serial Electrically EPROM Exel Microelectronics
XL24C16 16K-Bit Serial Electrically EPROM Exel

Other Datasheets by XLSEMI

Part Number Description
XL2001 5V/1.8A 150KHz 45V Buck DC to DC Converter
XL2003 3A 180KHz 30V Buck DC/DC Converter
XL2006 3A 160KHz 32V Buck DC/DC Converter
XL2009 3A 180KHz 36V Buck DC to DC Converter
XL2010 3.5A 180KHz 36V Buck DC to DC Converter

Full PDF Text Transcription

Click to expand full text

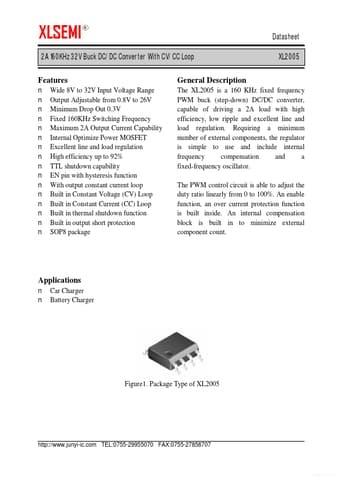

Datasheet 2A 160KHz 32V Buck DC/DC Converter With CV/CC Loop Features n n n n n n n n n n n n n n n n Wide 8V to 32V Input Voltage Range Output Adjustable from 0.8V to 26V Minimum Drop Out 0.
