XL2013 - 5V/3.2A 150KHz 40V Buck DC to DC Converter

Name: XL2013
SKU: XL2013-839869

Xlsemi

📥 Download Datasheet

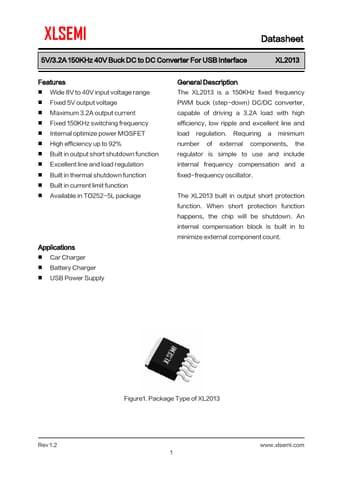

XL2013 Datasheet Preview — Preview of XL2013 PDF

Datasheet Details

Part number	XL2013
Manufacturer	Xlsemi
File Size	304.83 KB
Description	5V/3.2A 150KHz 40V Buck DC to DC Converter
Datasheet	XL2013-Xlsemi.pdf

XL2013 Product details

Description

The XL2013 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3.2A load with high efficiency, low ripple and excellent line and load regulation.

Features

Wide 8V to 40V input voltage range.
Fixed 5V output voltage.
Maximum 3.2A output current.
Fixed 150KHz switching frequency.
Internal optimize power MOSFET.
High efficiency up to 92%.
Built in output short shutdown function.
Excellent line and load regulation.
Built in thermal shutdown function.
Built in current limit function.
Available in TO252-5L package.
