XL2001 - 5V/1.8A 150KHz 45V Buck DC to DC Converter

Name: XL2001
SKU: XL2001-839866

Xlsemi

📥 Download Datasheet

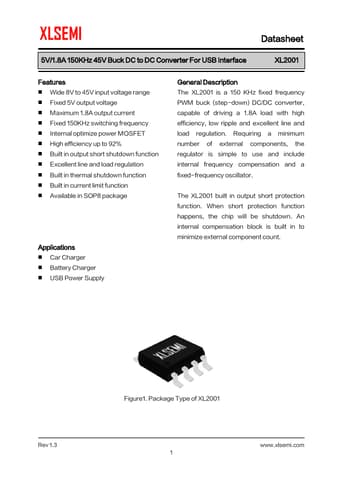

XL2001 Datasheet Preview — Preview of XL2001 PDF

Datasheet Details

Part number	XL2001
Manufacturer	Xlsemi
File Size	315.37 KB
Description	5V/1.8A 150KHz 45V Buck DC to DC Converter
Datasheet	XL2001-Xlsemi.pdf

XL2001 Product details

Description

The XL2001 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 1.8A load with high efficiency, low ripple and excellent line and load regulation.

Features

Wide 8V to 45V input voltage range.
Fixed 5V output voltage.
Maximum 1.8A output current.
Fixed 150KHz switching frequency.
Internal optimize power MOSFET.
High efficiency up to 92%.
Built in output short shutdown function.
Excellent line and load regulation.
Built in thermal shutdown function.
Built in current limit function.
Available in SOP8 package.
