YD3414 - DUAL HIGH CURRENT OPERATIONNAL AMPLIFIER

YD3414 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD3414 DUAL HIGH CURRENT OPERATIONNAL AMPLIFIER *YD3414 .
The YD3414 integrated circuit is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 70mA.

YD3414 Features

* Single Supply.
* Operating Voltage (+3V～+15V).
* High Output Current (70mA).
* Slew Rate (1.0V/μm typ).
* Package Outline： DIP8, SOP8.
* Bipolar Technology. BLOCK DIAGRAM 8 Vcc 7 6 + 5 + 1 2 3 Vee 4 WuXi YouDa Electronics Co. , Ltd Add: No.5 Xijin Road, National Hi-Tech Ind

📥 Download Datasheet

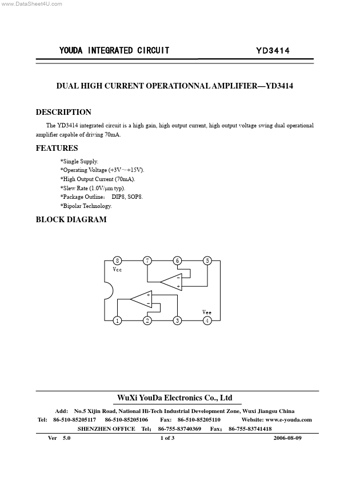

Preview of YD3414 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD3414
Manufacturer
Wuxi Youda electronics
File Size
180.07 KB
Datasheet
YD3414_WuxiYoudaelectronics.pdf
Description
DUAL HIGH CURRENT OPERATIONNAL AMPLIFIER
