YD3161 - DUAL EQUALIZER AMPLIFIER

YD3161 Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD3161 DUAL EQUALIZER AMPLIFIER * * .
YD3161 is 2-Channel Preamplifier For Car Stereo YD3161 FEATURES. On-chip 2 preamplifiers. Good ripple rejection owing to on-chip.

YD3161 Features

* On-chip 2 preamplifiers.
* Good ripple rejection owing to on-chip voltage regulator.
* Minimum number of external parts required.
* Low noise.
* 8-pin SIP package facilitating easy mounting. BLOCK DIAGRAM _ AMP.1 + Vcc 4 GND 5 AMP.2 _ + 1 2 3 6 7 8

📥 Download Datasheet

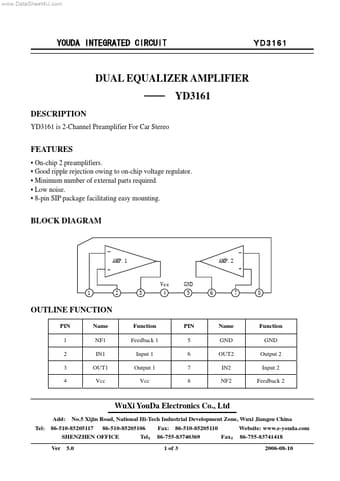

Preview of YD3161 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD3161
Manufacturer
Wuxi Youda electronics
File Size
100.95 KB
Datasheet
YD3161_WuxiYoudaelectronics.pdf
Description
DUAL EQUALIZER AMPLIFIER
