YD324 - FOUR OPERATIONAL AMPLIFIER

General Description

AND

Key Features

  • These devices consist of four independent high-gain, phase.
  • compensated operational amplifiers. A suitable recorder and Audio System for tone control. Can also used for telecom and instrument.
  • Built-in phase-compensated circuit.
  • Operating supply voltage range : VCC =3.0～30.0V or VCC=±1.5～±15V.
  • Input voltage can low to 0V.
  • Output voltage range :0V～VCC-1.5V.
  • Supply current : ICC=0.6mA (RL=∞).
  • DIP14 and SOP14 BLOCK.

📥 Download Datasheet

Datasheet Details

Part number YD324
Manufacturer Wuxi Youda electronics
File Size 122.31 KB
Description FOUR OPERATIONAL AMPLIFIER
Datasheet download datasheet YD324 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
YD3412 3W Stereo class F audio power amplifier Source Technology

Other Datasheets by Wuxi Youda electronics

Part Number Description
YD329 VFD/LED DRIVER
YD3161 DUAL EQUALIZER AMPLIFIER
YD3308F DUAL EQUALIZER AMPLIFIER
YD3361 Low Power Narrow Band IF Amplifier
YD339 QUAD DIFFERENTIAL COMPARATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

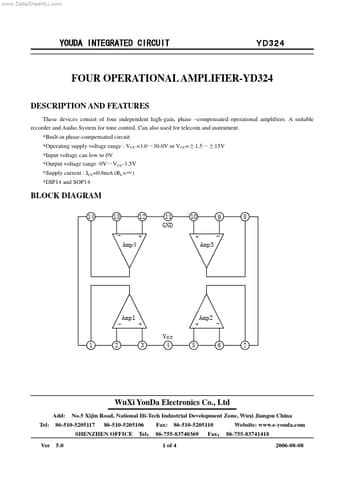

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD324 FOUR OPERATIONAL AMPLIFIER-YD324 DESCRIPTION AND FEATURES These devices consist of four independent high-gain, phase –compensated operational amplifiers. A suitable recorder and Audio System for tone control. Can also used for telecom and instrument. *Built-in phase-compensated circuit *Operating supply voltage range : VCC =3.0～30.0V or VCC=±1.5～±15V *Input voltage can low to 0V *Output voltage range :0V～VCC-1.5V *Supply current : ICC=0.6mA (RL=∞) *DIP14 and SOP14 BLOCK DIAGRAM 14 13 Amp4 12 + 11 GND 10 + Amp3 9 8 Amp1 1 2 + 3 Vcc 4 5 + Amp2 6 7 WuXi YouDa Electronics Co., Ltd Add: No.5 Xijin Road, National Hi-Tech Industrial Development Zone, Wuxi Jiangsu China Tel: 86-510-5205117 86-510-5205106 Fax: 86-510-5205110 Website: www.
